316-NM Stainless Steel US 5/8" Chain Shackle with Oversized Bolt

Name: 316-NM Stainless Steel US 5/8" Chain Shackle with Oversized Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-c4b004
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-c4b004

Heavy-duty 5/8" stainless steel chain shackle with 4,000 lb load rating. Compliant with federal specs. Made in the USA.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

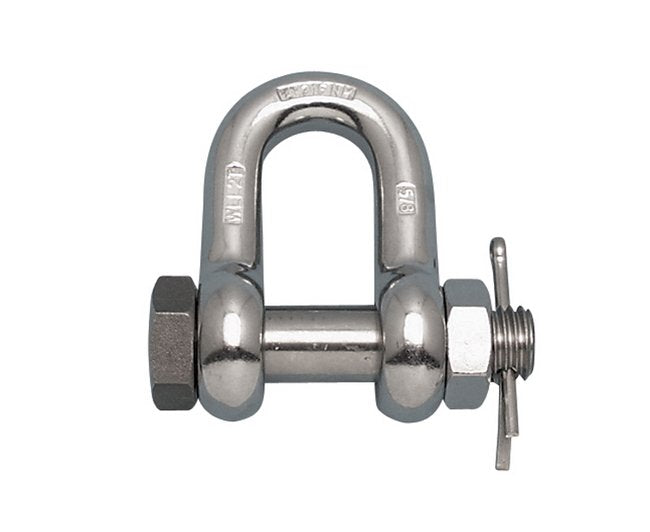

Ideal for heavy-duty chain applications, this 5/8" Size A stainless steel chain shackle with oversized bolt is drop forged, load rated for 4,000 lb, and proudly made in the USA. Compliant with federal specification RR-C-271F, type IVB, class 3 requirements, except for 316 stainless steel, this shackle is marked to the nearest fractional ton for precision and quality assurance.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVB, class 3, (except 316 stainless steel). Marked to the nearest fractional ton.

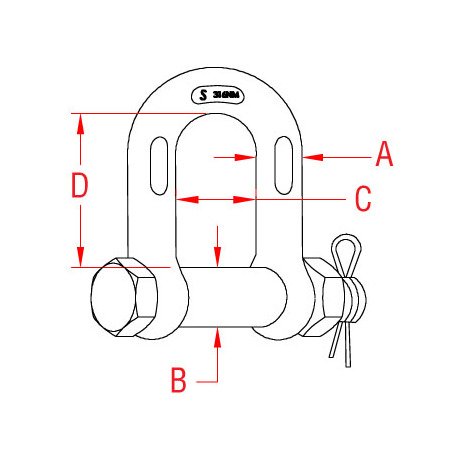

Specifications Applications

Chain

Specifications C

1.05 "

Specifications D

1.94 "

Specifications Dimension B

0.75 "

Specifications Key Features

Drop Forged | Load Rated | Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Size A

5/8 "

Specifications Weight

1.41 lb

Specifications Wll

4,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306
