316-NM Stainless Steel US Anchor Shackle 7/8" with Oversized Screw Pin

Name: 316-NM Stainless Steel US Anchor Shackle 7/8" with Oversized Screw Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-0818f9
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-0818f9

Enhance lifting and towing with the 316-NM Stainless Steel Anchor Shackle - DFARS Compliant & ASME B30.26-2004 Certified.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your lifting or towing operations with the 7/8 inch (in) Size A 316-NM Stainless Steel US Anchor Shackle featuring a Drop Forged construction for superior strength. With a Working Load Limit (WLL) of 8,000 lb and DFARS compliance, this shackle meets federal IVA, class 2 specifications. ASME B30.26-2004 compliant and made in the USA, this shackle ensures top-notch performance and durability for anchor applications.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Meets ASME B30.26-2004 American National Standard. DFARS compliant shackles. S0116-NM nitronic anchor shackles also available.

Specifications Applications

Anchor

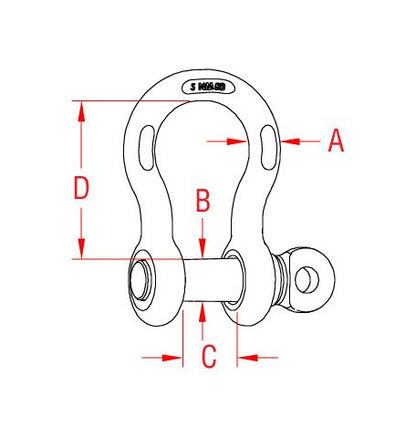

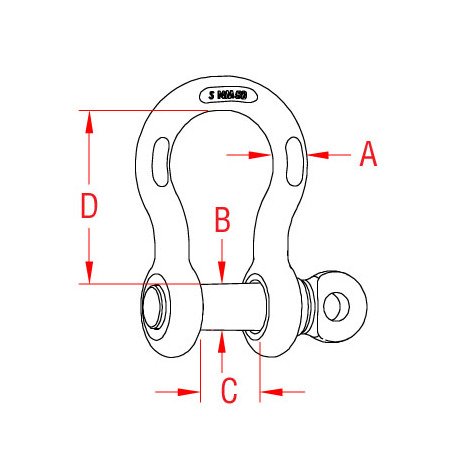

Specifications C

1.48 "

Specifications D

3.30 "

Specifications Dimension B

1.00 "

Specifications Key Features

Drop Forged | Load Rated | Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Size A

7/8 "

Specifications Weight

3.64 lb

Specifications Wll

8,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316-NM Stainless Steel US Anchor Shackle 7/8" with Oversized Screw Pin
