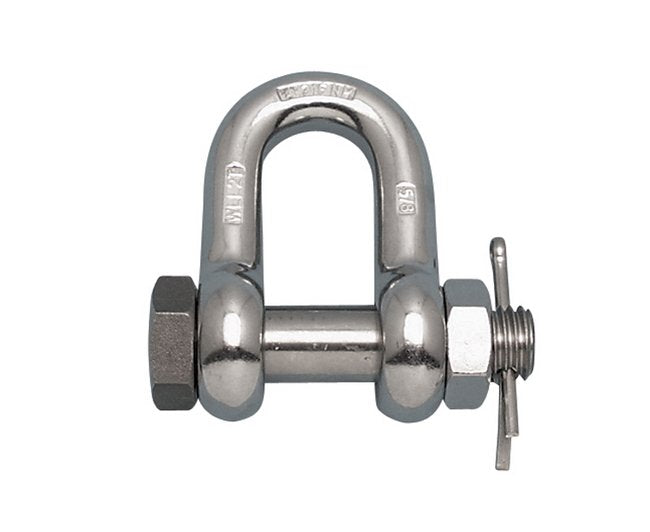

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

SKU:WIR-667b48

High-strength 1/4" 316-NM Stainless Steel US Chain Shackle with Oversized Bolt, WLL: 1000 lb, Drop Forged, Load Rated, Made in USA

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

$24.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

316-NM Stainless Steel US Chain Shackle with Oversized Bolt - 1/4 Inch

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316-NM Stainless Steel US Chain Shackle with Oversized Bolt in 1/4 inch size offers exceptional durability and strength for a variety of chain applications. This shackle is drop forged and load rated, meeting federal specification RR-C-271F, type IVB, class 3 standards (except 316 stainless steel). With a Working Load Limit (WLL) of 1000 lb, this shackle is marked to the nearest fractional ton, ensuring precise usage. Made in the USA, this shackle is a reliable and compliant choice for institutional and government buyers.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 3, (except 316 stainless steel). Marked to the nearest fractional ton.

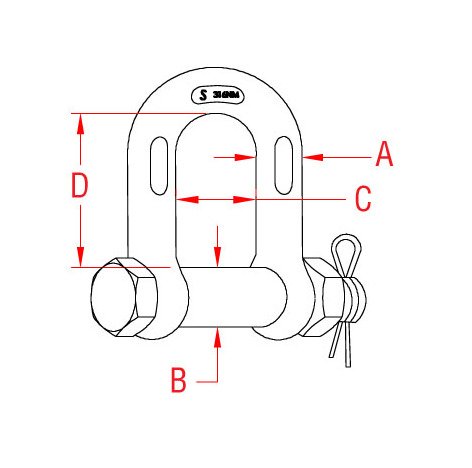

Specifications Applications
Chain
Specifications C
0.46 "
Specifications D
0.87 "
Specifications Dimension B
0.31 "
Specifications Key Features
Drop Forged | Load Rated | Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Size A
1/4 "
Specifications Weight
0.11 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
