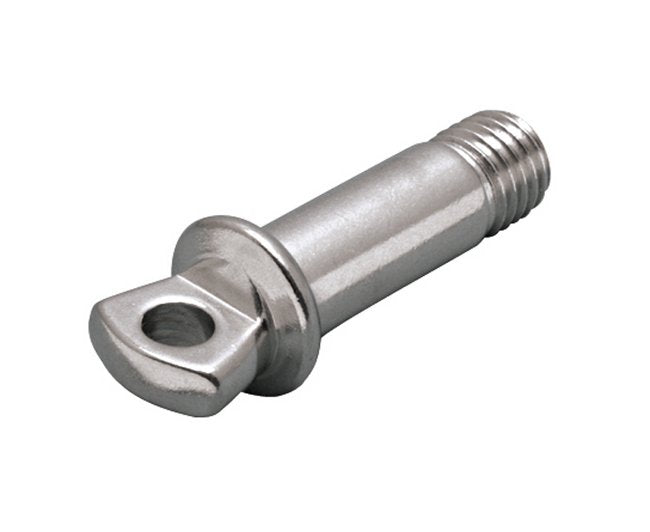

316-NM Stainless Steel US Shackle Pin - 5/16 Inch

Name: 316-NM Stainless Steel US Shackle Pin - 5/16 Inch
Brand: Lexco Cable Manufacturing
SKU: WIR-4b5c80
Price: 12.99 USD
Availability: OutOfStock

SKU:WIR-4b5c80

Premium 5/16" 316-NM Stainless Steel US Shackle Pin - Load Rated, Made in USA, Precision Machined - Compatible with chain & anchor shackles.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5/16 Inch (in) 316-NM Stainless Steel US Shackle Pin is a precision-machined, load-rated replacement pin. Made in the USA, it ensures exceptional strength with a Working Load Limit (WLL) of 1,300 lb. This pin is compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS), making it a versatile and reliable choice for heavy-duty applications in wire rope hardware setups.

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

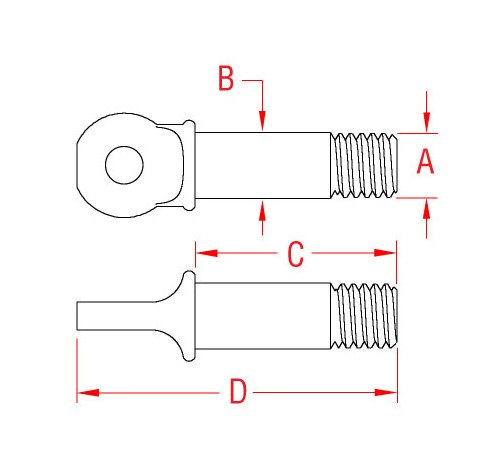

Specifications C

1.16 "

Specifications D

1.84 "

Specifications Dimension A

3/8 in.-16

Specifications Dimension B

0.38 "

Specifications Key Features

Load Rated | Made in USA | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

5/16 "

Specifications Weight

0.05 lb

Specifications Wll

1,300 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316-NM Stainless Steel US Shackle Pin - 5/16 Inch
