316 SS Duolok Front Ferrule, 3/16 in. Tube Fitting
316 SS Duolok Front Ferrule, 3/16 in. Tube Fitting
SKU:SOU-60b010
Premium 316 SS Duolok Front Ferrule for 3/16 in. tubing, ensures secure, leak-free connections
Regular price
$2.01
Regular price
Sale price
$2.01
Unit price
per
Initiate Order
316 SS Duolok Front Ferrule, 3/16 in. Tube Fitting
$2.01
Quantity: 1
Claim Your Seller Account
316 SS Duolok Front Ferrule, 3/16 in. Tube Fitting
$2.01
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 SS Duolok Front Ferrule, designed for 3/16 in. tubing, ensures secure and leak-free connections in instrumentation applications. Precision-crafted from high-grade stainless steel, this front ferrule guarantees durability and corrosion resistance, meeting stringent industry standards for reliability. Compatible with Duolok series fittings, it offers quick and easy installation, making it a preferred choice for both consumer and institutional buyers.

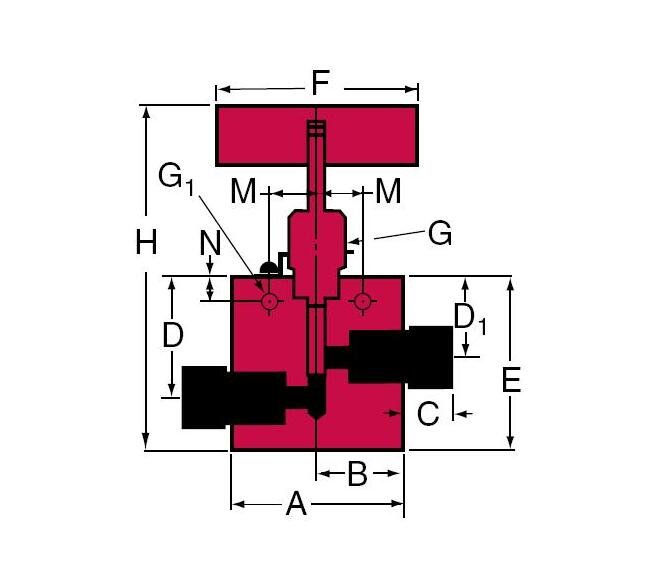

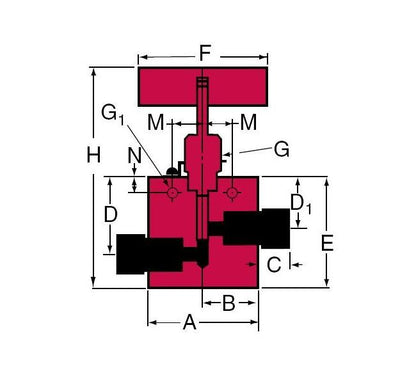

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.56 in | 39.62 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
