316 SS EB Series Encapsulated Angle Ball Valve
316 SS EB Series Encapsulated Angle Ball Valve
SKU:VAL-60fbff
Industry-grade 316 SS Angle Ball Valve with FNPT Connections, Cv: 0.75, Green Nylon Handle - Stainless Steel Insert
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
316 SS EB Series Encapsulated Angle Ball Valve
$59.99
Quantity: 1
Claim Your Seller Account
316 SS EB Series Encapsulated Angle Ball Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial fluid control with the 316 SS Encapsulated Angle Ball Valve from the EB Series. This valve features a durable 316 SS body with a Cv of 0.75 and a Packing made of Modified PTFE. The ergonomic Green Nylon Handle with a Stainless Steel Insert ensures smooth operation under extreme temperatures (-65 to 300 °F). With FNPT connections and meeting a working pressure of 2500 psig, this valve guarantees reliability and efficiency in demanding applications.
Product Specifications

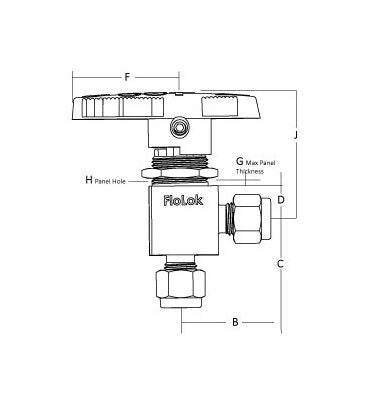

Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Cv
0.75
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PF-316
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
