316 SS Encapsulated Angle Ball Valve, EB Series 3/8-18 FNPT x 3/8-18 FNPT
316 SS Encapsulated Angle Ball Valve, EB Series 3/8-18 FNPT x 3/8-18 FNPT
SKU:VAL-b316e6
Durable 316 SS Encapsulated Angle Ball Valve for industrial fluid control. Cv: 1.5, PTFE Packing, 1500 psig, -65 to 150°F.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
316 SS Encapsulated Angle Ball Valve, EB Series 3/8-18 FNPT x 3/8-18 FNPT
$65.99
Quantity: 1
Claim Your Seller Account
316 SS Encapsulated Angle Ball Valve, EB Series 3/8-18 FNPT x 3/8-18 FNPT
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 SS Encapsulated Angle Ball Valve from the EB Series is a top-tier solution for industrial fluid control. Featuring a Cv of 1.5 and packing made of Modified PTFE, this valve ensures optimal performance in demanding environments. With a working pressure of 1500 psig | 103 bar and a temperature range of -65 to 150°F | -53 to 65°C, it excels in both extreme heat and cold. The green Nylon handle with Stainless Steel insert offers durability and easy operation, making this valve a reliable choice for industrial applications.

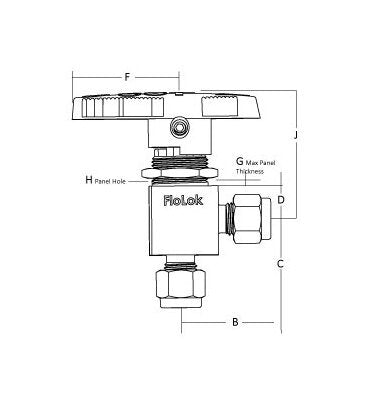

Product Specifications
Dimensions B
1.25 in | 31.8 mm
Dimensions C
1.25 in | 31.8 mm
Dimensions D
0.56 in | 14.2 mm
Dimensions F
1.86 in | 47.2 mm
Dimensions G
3/8 in | 9.5 mm
Dimensions H
1 1/8 in | 28.6 mm
Dimensions J
2.1 in | 53.3 mm
Dimensions Panel Bore
1 1/8 in
Dimensions W
1.12 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
3/8-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
3/8-18
Specifications Connection 2 Type
FNPT
Specifications Cv
1.5
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.281 in | 7.14 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
44GA6PF-316
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Type
Ball
Specifications Working Pressure
1500 psig | 103 bar
