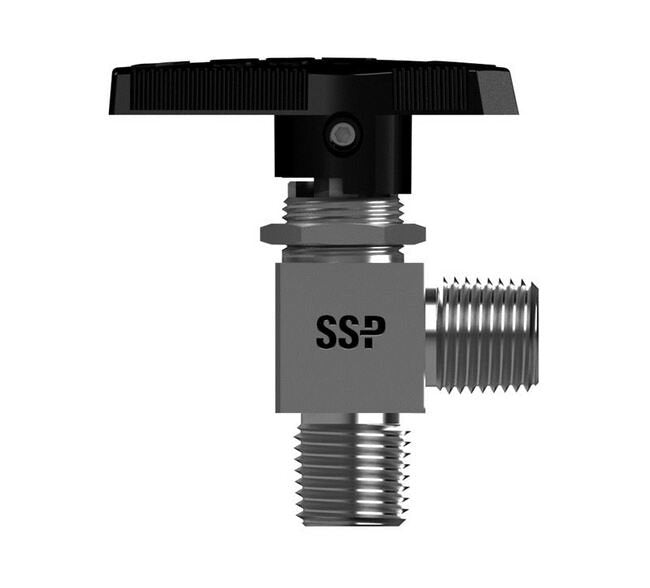

316 SS Encapsulated Angle Ball Valve - MNPT 1/4-18, EB Series
316 SS Encapsulated Angle Ball Valve - MNPT 1/4-18, EB Series
SKU:VAL-efe997
Durable 316 SS Encapsulated Angle Ball Valve for industrial fluid control. Cv: 0.75, 2500 psig working pressure, locking hardware.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
316 SS Encapsulated Angle Ball Valve - MNPT 1/4-18, EB Series
$59.99
Quantity: 1
Claim Your Seller Account
316 SS Encapsulated Angle Ball Valve - MNPT 1/4-18, EB Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial fluid control systems with our 316 SS Encapsulated Angle Ball Valve from the EB Series. This angle ball valve features durable construction with 316 SS body material, modified PTFE packing, and a blue Nylon handle with a stainless steel insert. With a Cv of 0.75 and a working pressure of 2500 psig, this valve offers optimal performance in temperatures ranging from -65 to 300 °F. Its locking hardware provides added security, making it ideal for various applications in demanding environments. Meet your industrial procurement needs with this reliable and efficient valve.
Ready to Grow Without Cash Flow Constraints?

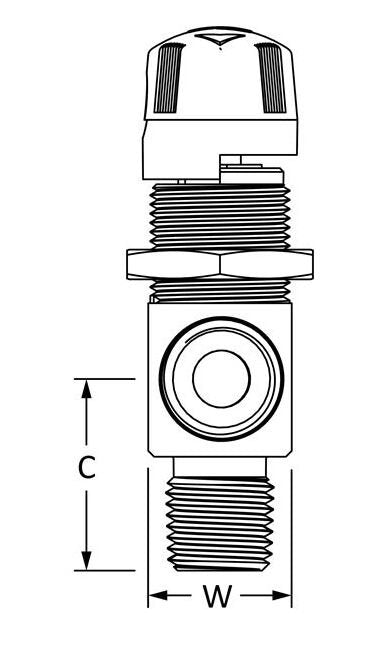

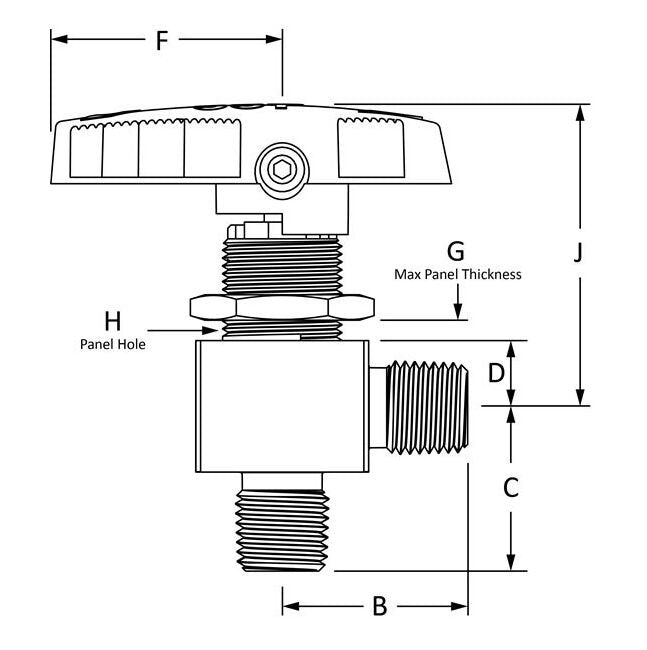

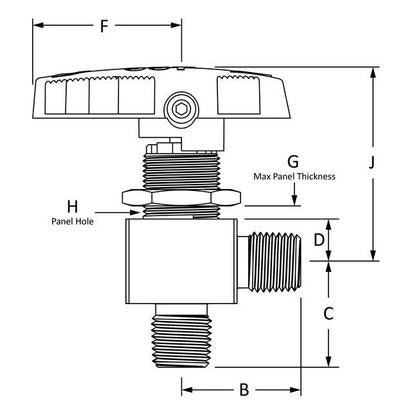

Product Specifications
Dimensions B
1 in | 25.4 mm
Dimensions C
1.03 in | 28.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 47.2 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
0.75
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PM-316
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
