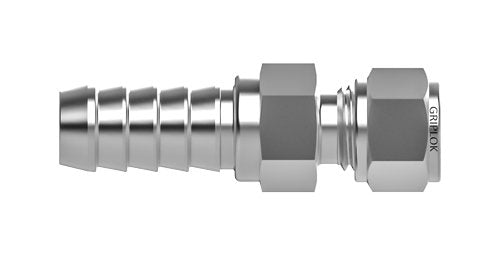

316 SS Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/4 Hose Barb
316 SS Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/4 Hose Barb
SKU:SSP-7103a5
Secure and durable 316 SS Griplok Hose Barb Connector for precise 1/4 Tube x 1/4 Hose Barb connections in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
316 SS Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/4 Hose Barb
$29.99
Quantity: 1
Claim Your Seller Account
316 SS Griplok Hose Barb Connector - 1/4 Tube Fitting x 1/4 Hose Barb
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 SS Griplok Hose Barb Connector is the ideal solution for secure and leak-free connections in high-pressure environments. This connector features a 1/4 inch Tube Fitting x 1/4 inch Hose Barb (Hose ID) design, ensuring a perfect fit and reliable performance. Crafted from durable 316 stainless steel, it offers exceptional corrosion resistance and can withstand temperatures ranging from -15 to 350 degrees Fahrenheit. With precise dimensions and a straight shape, this connector guarantees a tight seal, making it a top choice for instrumentation applications where quality and durability are paramount.

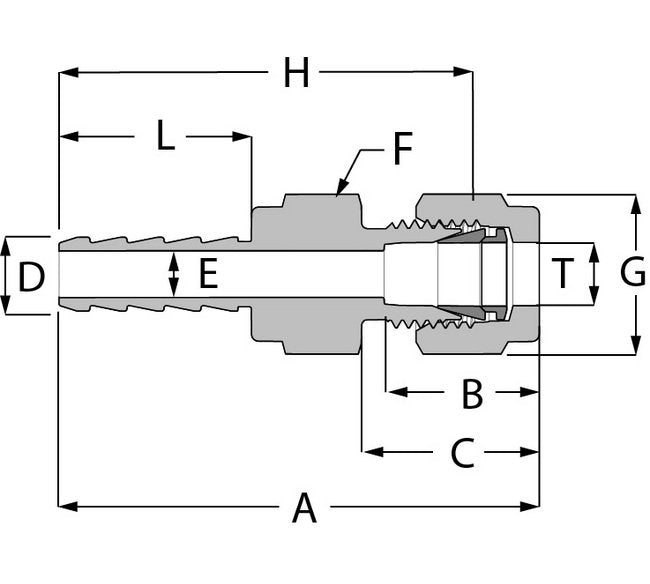

Product Specifications
Dimensions A
1.94 in
Dimensions B
0.64 in
Dimensions C
0.74 in
Dimensions D
0.30 in
Dimensions E
0.19 in
Dimensions F Hex Flat
9/16 in
Dimensions G
9/16 in
Dimensions H
1.63 in
Dimensions L
0.79 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/4 in
Specifications Production Category
3
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
