316 SS Griplok Male Connector - 1/8 Tube x 1/2-14 MNPT
316 SS Griplok Male Connector - 1/8 Tube x 1/2-14 MNPT
SKU:FIT-44ab37
Premium 316 SS Male Connector for secure 1/8 Tube x 1/2-14 MNPT connections. Reliable, leak-free design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
316 SS Griplok Male Connector - 1/8 Tube x 1/2-14 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
316 SS Griplok Male Connector - 1/8 Tube x 1/2-14 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

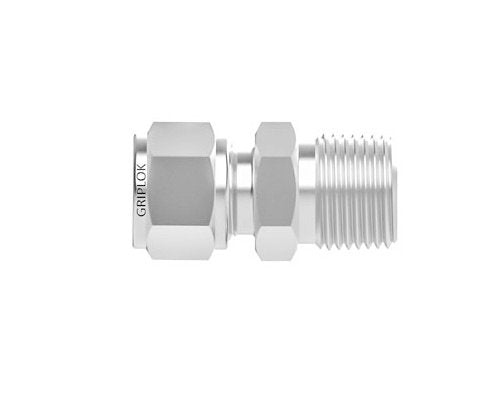

Upgrade your fluid systems with the precision-engineered Griplok Male Connector. Made of durable 316 SS, it ensures leak-free connections with 1/8 inch Tube Fitting and 1/2-14 MNPT threads. The straight shape and compact design deliver reliability and ease of installation. Trust Griplok for superior performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?

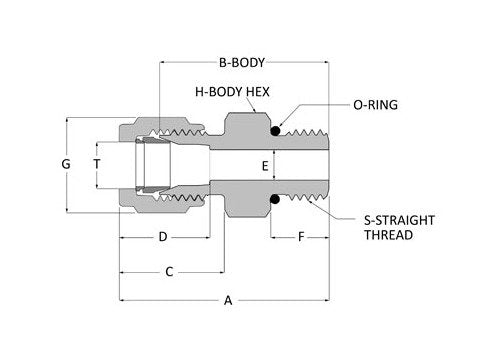

Product Specifications
Dimensions A
1.72 in
Dimensions B
1.40 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F Minimum
0.75 in
Dimensions G
7/16 in
Dimensions H
7/8 in
Dimensions P
1/2 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
