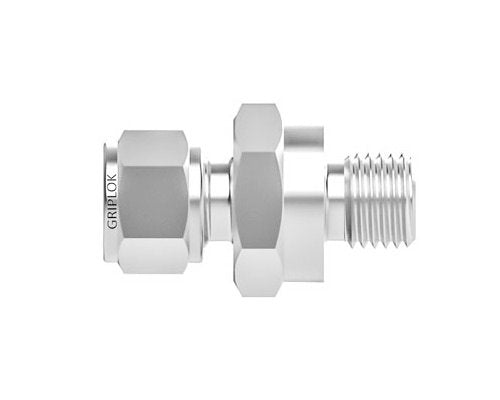

316 SS Griplok O-Ring Seal Straight Thread Connector - 1/2 Tube x 1/2-14 O-ring Seal Straight
316 SS Griplok O-Ring Seal Straight Thread Connector - 1/2 Tube x 1/2-14 O-ring Seal Straight
SKU:SSP-4b5785
Enhance fluid systems with high-grade 316 SS Griplok Connector for secure, leak-free 1/2-inch tube connections.
Regular price
$34.31
Regular price
Sale price
$34.31
Unit price
per
Initiate Order
316 SS Griplok O-Ring Seal Straight Thread Connector - 1/2 Tube x 1/2-14 O-ring Seal Straight
$34.31
Quantity: 1
Claim Your Seller Account
316 SS Griplok O-Ring Seal Straight Thread Connector - 1/2 Tube x 1/2-14 O-ring Seal Straight
$34.31
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the 316 SS Griplok O-Ring Seal Straight Thread Connector. This straight tube fitting ensures a secure, leak-free connection between 1/2-inch tubing and O-ring seal straight threads. Crafted from high-grade 316 stainless steel, it guarantees durability and corrosion resistance, ideal for industrial applications requiring precision and reliability. Trust in the Griplok brand for quality instrumentation tube fittings that meet rigorous industry standards.

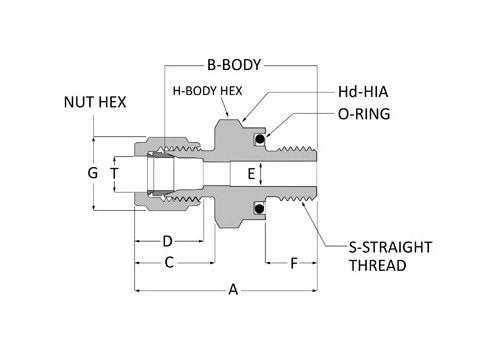

Product Specifications
Dimensions A
1.88 in
Dimensions B
1.41 in
Dimensions C
0.93 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions F
0.47 in
Dimensions G
7/8 in
Dimensions H
1 1/8 in
Dimensions Hd
1.12 in
Dimensions S
3/4-16
Dimensions T
1/2 in
Specifications As568 O Ring Uniform Size Number
-116
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
O-ring Seal Straight Thread
Specifications End Connections
TF x O-ring Seal Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
34.31 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
