316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

SSP-807fc3

Premium 316 SS Griplok O-Ring Connector - Leak-free, Durable, Ideal for Instrumentation

$48.36
$48.36
Sale

Initiate Order

316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

$48.36

Quantity: 1

Claim Your Seller Account

316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

316 SS Griplok O-Ring Seal Straight Thread Connector - 3/4 Tube x O-ring, SS316, TF x O-ring, Griplok Series

$48.36

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

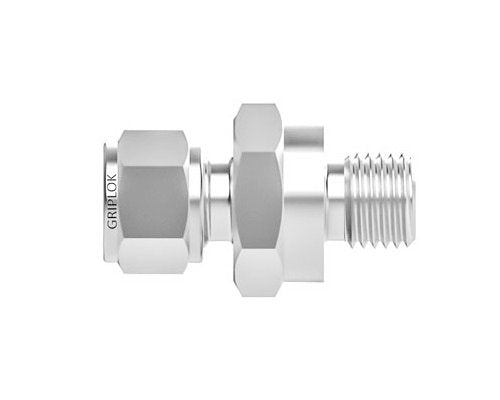

The 316 SS Griplok O-Ring Seal Straight Thread Connector is designed for reliable performance in instrumentation applications. This connector features a 3/4-inch Tube Fitting and O-ring Sealed Straight Thread, ensuring a secure and leak-free connection. Crafted from high-quality 316 SS for durability and corrosion resistance, it meets the stringent requirements of industrial settings. With precise dimensions and a Griplok design, this connector guarantees a secure fit, making it ideal for critical systems.

Product Specifications

Dimensions A
2.10 in
Dimensions B
1.66 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.62 in
Dimensions F
0.56 in
Dimensions G
1 1/8 in
Dimensions H
1 1/2 in
Dimensions Hd
1.49 in
Dimensions S
1 1/16-12
Dimensions T
3/4 in
Specifications As568 O Ring Uniform Size Number
-215
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
48.36 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
