316 SS Griplok Union Cross - 1/8 inch
316 SS Griplok Union Cross - 1/8 inch
SKU:FIT-3559f0
High-quality 316 SS Union Cross with 1/8" Griplok Tube Fittings for secure connections in instrumentation applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
316 SS Griplok Union Cross - 1/8 inch
$45.99
Quantity: 1
Claim Your Seller Account
316 SS Griplok Union Cross - 1/8 inch
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

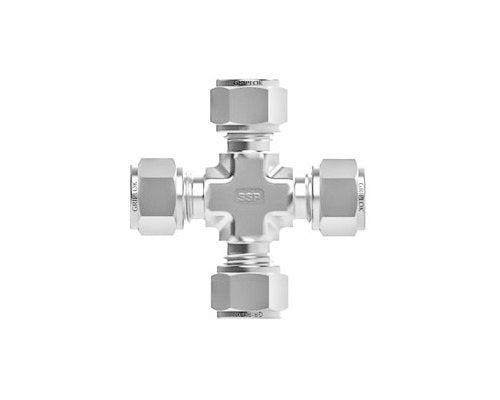

The 316 SS Griplok Union Cross features a durable design with 1/8 inch Griplok Tube Fittings on all four connections. This union cross ensures secure and leak-free connections, ideal for instrumentation applications. Crafted to precision, it meets rigorous industry standards for reliability and performance.

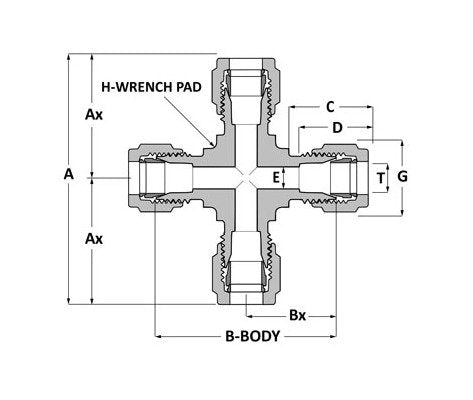

Product Specifications
Dimensions A
1.82 in
Dimensions Ax
0.88 in
Dimensions B
1.24 in
Dimensions Bx
0.62 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Connection 3 Size
1/8 in
Specifications Connection 3 Type
Griplok Tube Fitting
Specifications Connection 4 Size
1/8 in
Specifications Connection 4 Type
Griplok Tube Fitting
Specifications End Connections
TF x TF x TF x TF
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Cross
Category 6
Tube Fitting Unions - Griplok
