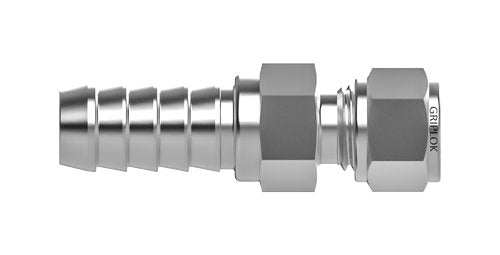

316 SS Hose Barb Connector - Griplok, 3/8 in Tube x 1/4 in Hose ID
316 SS Hose Barb Connector - Griplok, 3/8 in Tube x 1/4 in Hose ID
SKU:SSP-229e03
Secure Griplok Hose Barb Connector for 3/8in Tube x 1/4in Hose ID, 316 SS. Ensures leak-free performance in -15 to 350 °F. Trust in quality fluid connections!
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316 SS Hose Barb Connector - Griplok, 3/8 in Tube x 1/4 in Hose ID
$24.99
Quantity: 1
Claim Your Seller Account
316 SS Hose Barb Connector - Griplok, 3/8 in Tube x 1/4 in Hose ID
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience secure and reliable fluid connections with our Griplok Hose Barb Connector. This 316 SS fitting features a 3/8-inch tube coupling that effortlessly connects to a 1/4-inch hose barb, ensuring leak-free performance in a temperature range of -15 to 350 °F. With precise dimensions and a straight shape, it guarantees a perfect fit for your instrumentation systems. Trust the Griplok series for durability and efficiency in fluid handling.
Ready to Grow Without Cash Flow Constraints?

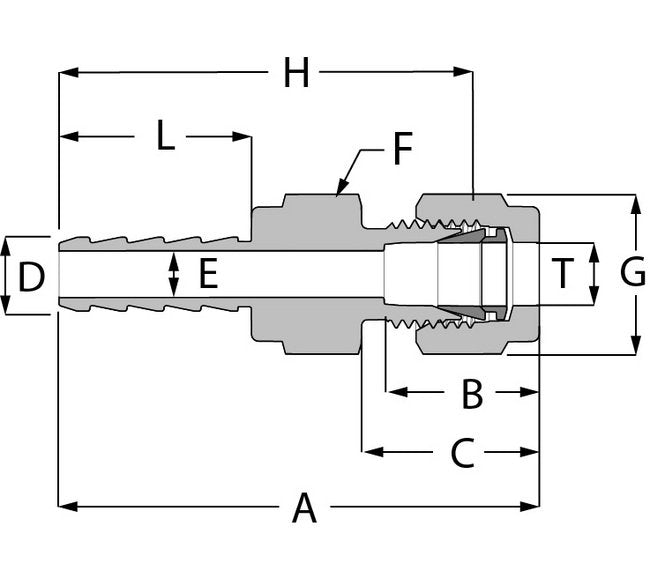

Product Specifications
Dimensions A
2.01 in
Dimensions B
0.71 in
Dimensions C
0.81 in
Dimensions D
0.45 in
Dimensions E
0.19 in
Dimensions F Hex Flat
9/16 in
Dimensions G
11/16 in
Dimensions H
1.70 in
Dimensions L
0.87 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
3/8 in
Specifications Production Category
3
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
