316 SS Male Pipe Weld Connector - Griplok, 5/8 Tube x 1/2 Pipe Stub
316 SS Male Pipe Weld Connector - Griplok, 5/8 Tube x 1/2 Pipe Stub
SKU:SSP-3cfb70
Durable 316 SS Male Pipe Weld Connector for secure, leak-free connections in instrumentation applications.
Regular price
$28.10
Regular price
Sale price
$28.10
Unit price
per
Initiate Order
316 SS Male Pipe Weld Connector - Griplok, 5/8 Tube x 1/2 Pipe Stub
$28.10
Quantity: 1
Claim Your Seller Account
316 SS Male Pipe Weld Connector - Griplok, 5/8 Tube x 1/2 Pipe Stub
$28.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

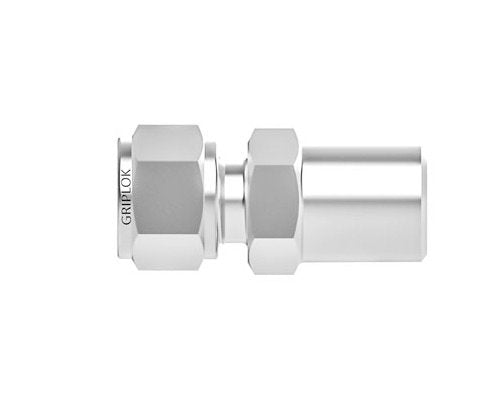

The 316 SS Male Pipe Weld Connector combines reliability and durability in a straight design suitable for instrumentation applications. Featuring a 5/8-inch Tube Fitting and a 1/2-inch Pipe Stub, this connector ensures a secure and leak-free connection. Crafted from high-grade 316 SS, it offers superior corrosion resistance, making it ideal for demanding industrial environments. With precise dimensions conforming to industry standards, this Griplok fitting guarantees seamless compatibility and easy installation, meeting the stringent requirements of government and institutional procurement.

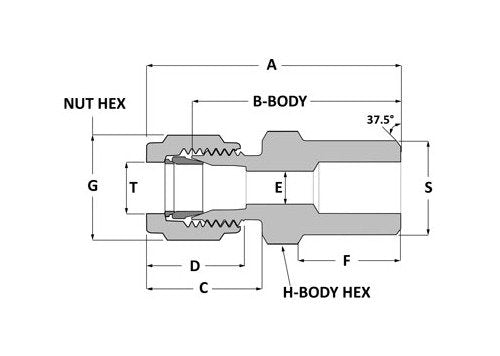

Product Specifications
Dimensions A
1.97 in
Dimensions B
1.53 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.50 in
Dimensions F
0.75 in
Dimensions G
1 in
Dimensions H
15/16 in
Dimensions Pipe Od
0.840 in
Dimensions S
0.84 in
Dimensions T
5/8 in
Dimensions Tube Id
5/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
5/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
28.1 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
