316 SS Male Run Tee - Griplok, 1/4" TF x 1/8" MNPT x 1/4" TF
316 SS Male Run Tee - Griplok, 1/4" TF x 1/8" MNPT x 1/4" TF
SKU:FIT-08ff90
Premium 316 SS Male Run Tee for precise instrumentation tube connections. 1/4" TF x 1/8" MNPT x 1/4" TF.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
316 SS Male Run Tee - Griplok, 1/4" TF x 1/8" MNPT x 1/4" TF
$34.99
Quantity: 1
Claim Your Seller Account
316 SS Male Run Tee - Griplok, 1/4" TF x 1/8" MNPT x 1/4" TF
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

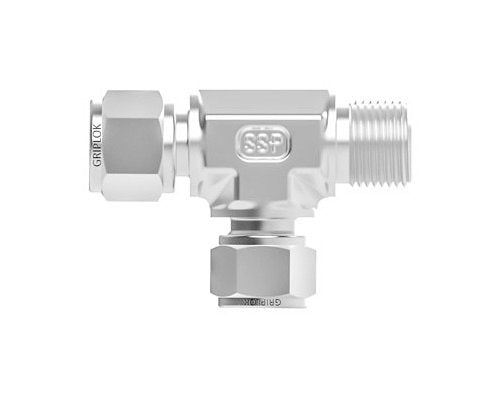

The 316 SS Male Run Tee from Griplok is a precision-engineered tube fitting designed for durability and performance. Featuring a 1/4 inch tube fitting connection on one end, a 1/8-27 male NPT thread on the other, and another 1/4 inch tube fitting connection, this Tee fitting ensures secure and leak-free connections in instrumentation applications. Constructed from high-grade 316 stainless steel, it offers excellent corrosion resistance and reliability under high pressure. With precise dimensions and a sturdy T-shape design, this fitting is ideal for demanding industrial settings where precision and quality are paramount.

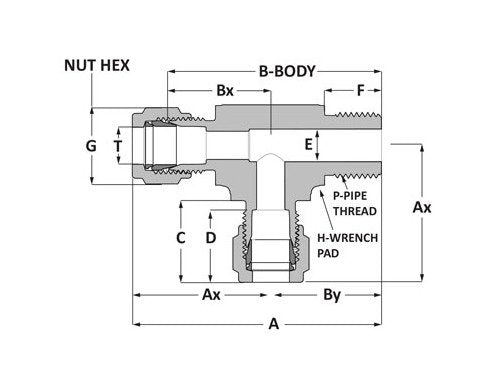

Product Specifications
Dimensions A
1.84 in
Dimensions Ax
1.06 in
Dimensions B
1.51 in
Dimensions Bx
0.77 in
Dimensions By
0.74 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.38 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions P
1/8 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x MNPT x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Tee
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
