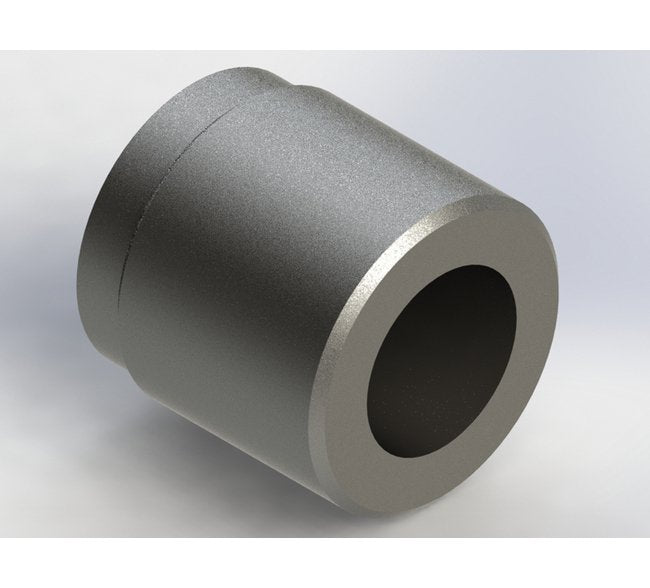

316 SS Precision Metal Orifices - Press-Fit Inserts, 0.315" OD
316 SS Precision Metal Orifices - Press-Fit Inserts, 0.315" OD
SKU:PRE-0a4bf9
High-performance 316 SS Precision Orifices for precise flow control in air and water applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
316 SS Precision Metal Orifices - Press-Fit Inserts, 0.315" OD
$49.99
Quantity: 1
Claim Your Seller Account
316 SS Precision Metal Orifices - Press-Fit Inserts, 0.315" OD
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 SS Precision Metal Orifices - Press-Fit Inserts are engineered for precise flow control applications. With an orifice diameter of 0.047 inches and a maximum operating pressure of 4000 psig, these inserts offer exceptional durability and performance. Designed to press-fit into bores ranging from 0.3140 to 0.3150 inches, they ensure a secure and reliable connection. Ideal for air and water flow applications, these inserts deliver consistent flow rates and are crafted from high-quality 316 stainless steel for corrosion resistance and longevity. Compliant with federal procurement standards and industry-specific certifications, these inserts meet the stringent requirements of institutional buyers seeking reliability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Maximum Outside Diameter
0.3160 in
Dimensions Minimum Outside Diameter
0.3155 in
Dimensions Orifice Diameter
0.047 in
Dimensions Press Fit Into Bore
0.3140 to 0.3150 in
Dimensions Total Length
0.313 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 13.60 | 5 psig: 30.1 | 10 psig: 41.0 | 15 psig: 50.0 | 20 psig: 58.7 | 25 psig: 67.6 | 30 psig: 76.3 | 40 psig: 94.3 | 50 psig: 112 | 60 psig: 130 | 70 psig: 148 | 80 psig: 167 | 90 psig: 185 | 100 psig: 203
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 6.43 | 5 psig (34.5 kPag): 14.2 | 10 psig (69.0 kPag): 19.4 | 15 psig (103.4 kPag): 23.6 | 20 psig (137.9 kPag): 27.7 | 25 psig (172.4 kPag): 31.9 | 30 psig (206.9 kPag): 36 | 40 psig (275.8 kPag): 44.5 | 50 psig (344.8 kPag): 52.9 | 60 psig (413.7 kPag): 61.5 | 70 psig (482.7 kPag): 70 | 80 psig (551.6 kPag): 78.6 | 90 psig (620.6 kPag): 87.2 | 100 psig (689.5 kPag): 95.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 24.5 | 20 In. Hg.: 24.5 | 30 In. Hg.: 24.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 11.6 | 20 In. Hg. (508 Mm. Hg.): 11.6 | 30 In. Hg. (762 Mm. Hg.): 11.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 19.2 | 10 In. Hg.: 23.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 9.08 | 10 In. Hg. (254 Mm. Hg.): 11.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.048 | 2 psig: 0.068 | 3 psig: 0.083 | 4 psig: 0.096 | 5 psig: 0.107 | 6 psig: 0.118 | 7 psig: 0.127 | 8 psig: 0.136 | 9 psig: 0.144 | 10 psig: 0.152 | 15 psig: 0.186 | 20 psig: 0.215 | 30 psig: 0.263 | 40 psig: 0.304 | 50 psig: 0.339 | 60 psig: 0.372 | 70 psig: 0.402 | 80 psig: 0.429 | 90 psig: 0.455 | 100 psig: 0.480
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.182 | 2 psig (13.8 kPag): 0.257 | 3 psig (20.7 kPag): 0.315 | 4 psig (27.6 kPag): 0.363 | 5 psig (34.5 kPag): 0.406 | 6 psig (41.4 kPag): 0.445 | 7 psig (48.3 kPag): 0.481 | 8 psig (55.2 kPag): 0.514 | 9 psig (62.1 kPag): 0.545 | 10 psig (69 kPag): 0.575 | 15 psig (103.4 kPag): 0.704 | 20 psig (137.9 kPag): 0.813 | 30 psig (206.9 kPag): 0.995 | 40 psig (275.8 kPag): 1.149 | 50 psig (344.8 kPag): 1.285 | 60 psig (413.7 kPag): 1.407 | 70 psig (482.7 kPag): 1.520 | 80 psig (551.6 kPag): 1.625 | 90 psig (620.6 kPag): 1.724 | 100 psig (689.5 kPag): 1.817
Specifications Connection A
.3155" Press-Fit Insert
Specifications Cv
0.048
Specifications Material
316 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
47
Specifications Screened
None
