316 Stainless Steel 3/4" Wafer Insert Check Valve, 0.125 psi Cracking Pressure
316 Stainless Steel 3/4" Wafer Insert Check Valve, 0.125 psi Cracking Pressure
SKU:WVS-5cf21c
High-quality 316 Stainless Steel 3/4" Wafer Insert Check Valve for precise pressure control. Compliant with ANSI Class standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
316 Stainless Steel 3/4" Wafer Insert Check Valve, 0.125 psi Cracking Pressure
$129.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel 3/4" Wafer Insert Check Valve, 0.125 psi Cracking Pressure
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

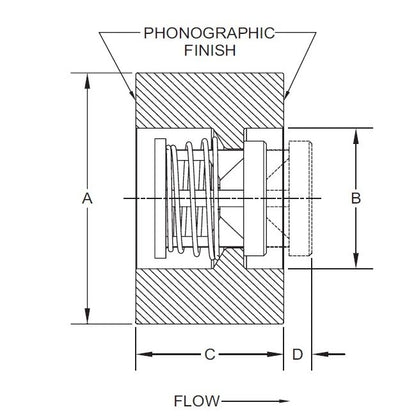

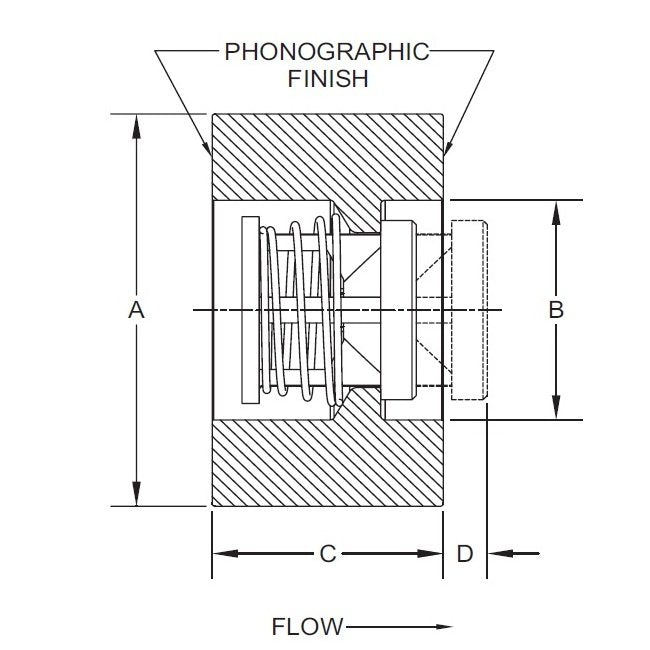

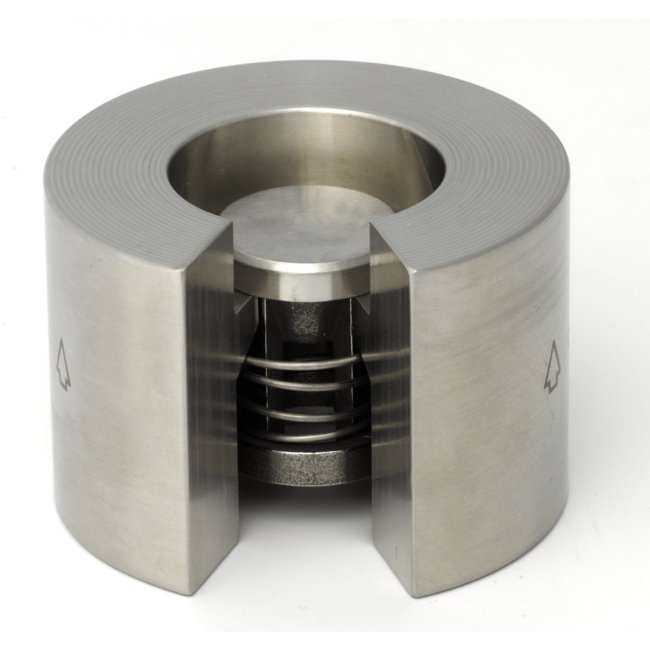

The Check-All® WV Style Wafer Insert Check Valve is a versatile solution that fits between ANSI flanges for easy installation. Designed with high-quality 316 stainless steel materials and various seat options, this valve ensures reliable performance in low-pressure applications. With a standard cracking pressure of 0.125 psi and compliance with ANSI Class 150 to 2500 pressure ratings, this valve meets stringent industry standards for durability and safety. Made in the USA, this valve is ideal for use in applications requiring quick installation and precise pressure control.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3/4 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
F
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
