316 Stainless Steel Anchor Shackle Body

316 Stainless Steel Anchor Shackle Body

SKU:STA-ed1c3f

High-quality 316 stainless steel Anchor Shackle Body for secure and reliable connections in rigging and lifting applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316 Stainless Steel Anchor Shackle Body

316 Stainless Steel Anchor Shackle Body

$24.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Anchor Shackle Body

316 Stainless Steel Anchor Shackle Body

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

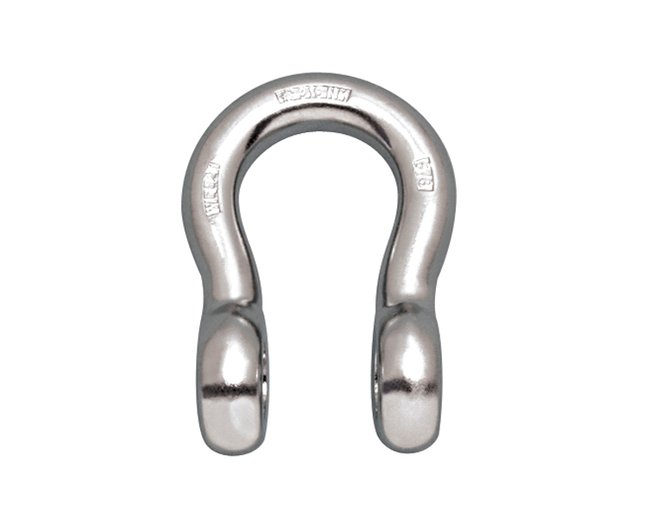

The 316 Stainless Steel Anchor Shackle Body is a durable and reliable unthreaded component marked to the nearest fractional ton. Made from grade 316 stainless steel, it offers exceptional corrosion resistance and strength. Available in various sizes from 1/4" to 1-1/4", this shackle body is a versatile replacement part compatible with the Shackle Bolt for secure connections in demanding applications. With a Working Load Limit (WLL) of 3000 lb, this drop-forged shackle body is ideal for rigging, lifting, and securing heavy loads.

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
0.65 in
Specifications Dimension C
0.81 in
Specifications Dimension D
1.31 in
Specifications Dimension E
3.28 in
Specifications Dimension X
1.17 in
Specifications Dimension Y
3.24 in
Specifications Dimension Z
2.23 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.45 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
