316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

SKU:STA-3029e7

High-grade 316 Stainless Steel Anchor Shackle Body with 10,000 lb WLL. Trusted Suncor quality for reliable performance.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

316 Stainless Steel Anchor Shackle Body - Suncor 10,000 lb WLL

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

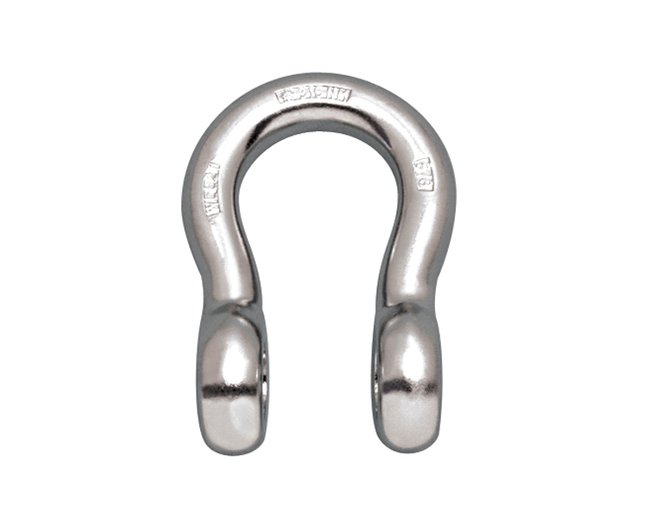

The 316 Stainless Steel Anchor Shackle Body by Suncor is a reliable unthreaded component marked to the nearest fractional ton. This drop-forged shackle body is crafted from high-grade 316-NM stainless steel, ensuring exceptional durability and corrosion resistance. With a generous working load limit of 10,000 lb, this Suncor exclusive product is available in various sizes from 1/4" to 1-1/4". Compatible with the Shackle Bolt, this anchor shackle body is a trusted choice for replacement parts, offering unmatched strength and performance for diverse applications. Upgrade to Suncor quality for peace of mind in demanding conditions.

Product Specifications

Specifications Dimension A
1 in
Specifications Dimension B
1.15 in
Specifications Dimension C
1.69 in
Specifications Dimension D
2.69 in
Specifications Dimension E
6.50 in
Specifications Dimension X
2.18 in
Specifications Dimension Y
6.25 in
Specifications Dimension Z
4.4 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
3.14 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
