316 Stainless Steel Basic-Check Threaded In-Line Check Valve 0.75" BSSH6 Style with Zelon Seal
316 Stainless Steel Basic-Check Threaded In-Line Check Valve 0.75" BSSH6 Style with Zelon Seal
SKU:INL-0903e1
Reliable 316 SS Basic-Check® Threaded In-Line Check Valve - Ideal for liquids, steam, and gases. Precision-lapped sealing, easy maintenance.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
316 Stainless Steel Basic-Check Threaded In-Line Check Valve 0.75" BSSH6 Style with Zelon Seal
$159.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Basic-Check Threaded In-Line Check Valve 0.75" BSSH6 Style with Zelon Seal
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 0.75" 316 SS BSSH6 Style Basic-Check® Threaded In-Line Check Valve with Zelon® seal offers unmatched durability and reliability for a wide range of liquids, steam, and gases under various pressure and temperature conditions. With a precision-lapped metal-to-metal sealing area, it ensures tight shutoff of gas, steam, and liquid, making it ideal for critical applications. This valve features threaded ends, stainless steel construction, spring-assisted silent closing, horizontal or vertical installation flexibility, and easy maintenance, providing a versatile solution for diverse industrial needs. Compliant with ANSI B1.20.1, B16.11, MSS SP-25 standards.
Product Specifications
Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile

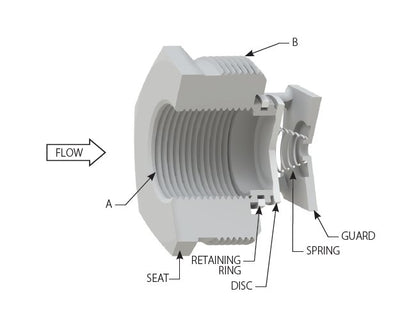

Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
316 SS/Zelon®
Materials Of Construction Spring
316 SS
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
0.88 lb | 0.4 kg
Specifications Cold Working Pressure
5500 psig | 379 barg
Specifications Cv
13.2
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
6
Specifications Friction Loss Meter Of Pipe
1.8
Specifications Line Size Inlet Fnpt A
0.75 in
Specifications Outside Thread Mnpt B
1.50 in
Specifications Series
Basic-Check®
Specifications Size
0.75 in | DN 20
Specifications Style
BSSH6
Specifications Temperature Rating
37 to 450 ºF | 2.78 to 232.22 ºC
Specifications Valve Cracking Pressure
0.44 psi | 0.03 bar | 12.1 in.water | 307 mm.water | 22.6 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
3795 psig
