316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

SKU:STA-3dffe1

Premium 316 Stainless Steel Sheave for marine and industrial rigging, with 2 bearings, WLL of 1000 lb, and superior corrosion resistance.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

316 Stainless Steel Bearing Wire Rope Sheave for Marine and Industrial Rigging

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

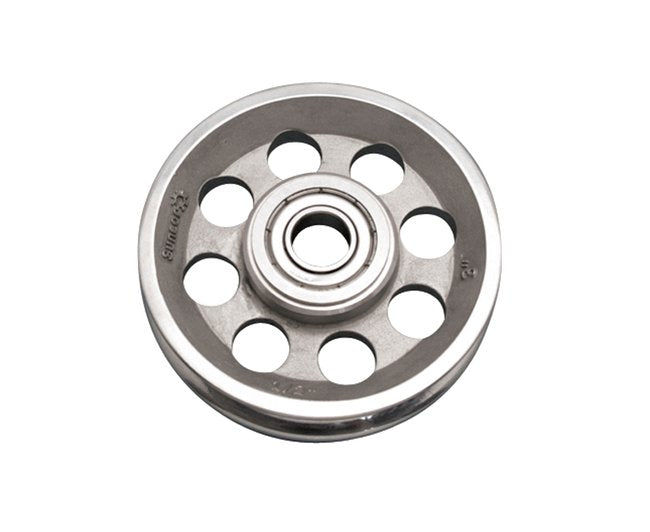

The 316 Stainless Steel Bearing Wire Rope Sheave by Suncor is a top-of-the-line rigging component designed for marine and industrial applications. Featuring 2 shielded stainless steel bearings, this sheave accommodates wire rope sizes ranging from 3/32" to 3/8". Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance and durability. With a Working Load Limit (WLL) of 1000 lb, precision cast construction, and weighing just 0.36 lb, this sheave is both rugged and efficient. Perfect for demanding environments, this Suncor exclusive product combines quality, reliability, and performance.

Product Specifications

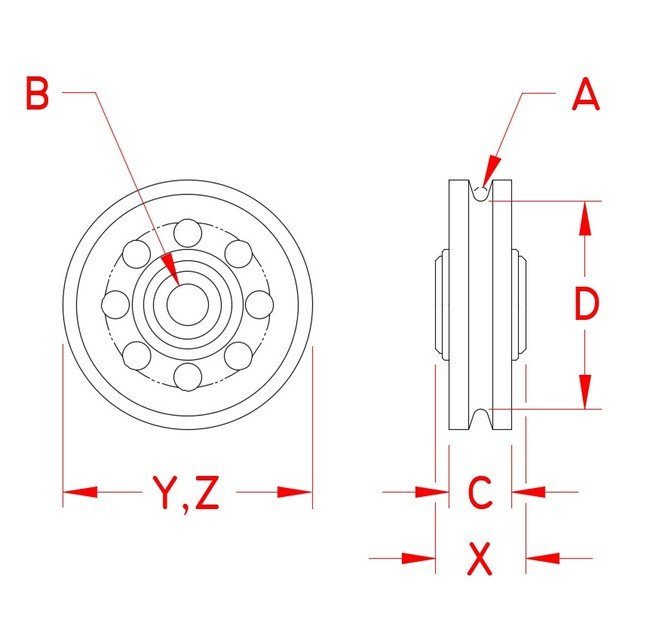

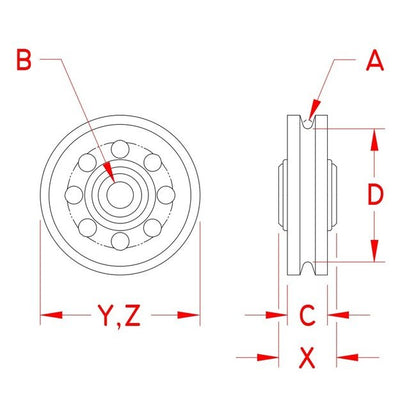

Specifications Dimension A
3/32+ 1/8 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.56 in
Specifications Dimension D
1.88 in
Specifications Dimension X
0.81 in
Specifications Dimension Y
2.25 in
Specifications Dimension Z
2.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.36 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
