316 Stainless Steel Bolt Chain Shackle

Name: 316 Stainless Steel Bolt Chain Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-5ee46e
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-5ee46e

Heavy-duty 316 Stainless Steel Bolt Chain Shackle with 4,000 lb WLL. ASME & Mil. Spec compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

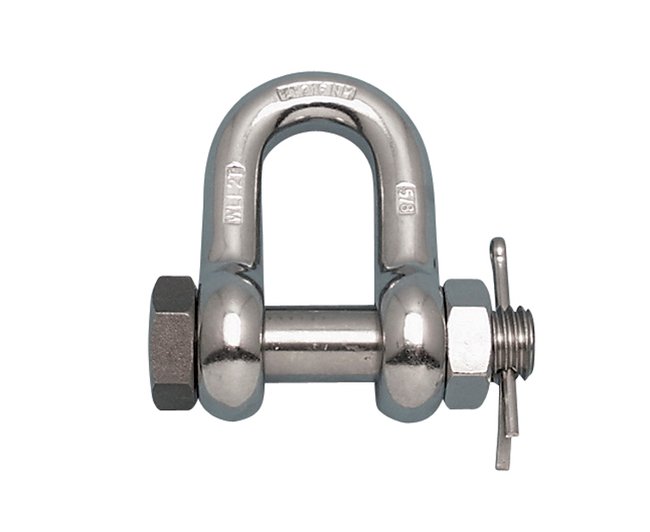

Enhance your industrial and marine applications with the 316 Stainless Steel Bolt Chain Shackle. This shackle boasts a drop-forged construction, oversized bolt, and 4,000 lb Working Load Limit (WLL). Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and more, ensuring top-notch quality and durability. Ideal for heavy-duty use, corrosion-resistant, and made to precision for Suncor.

Product Specifications

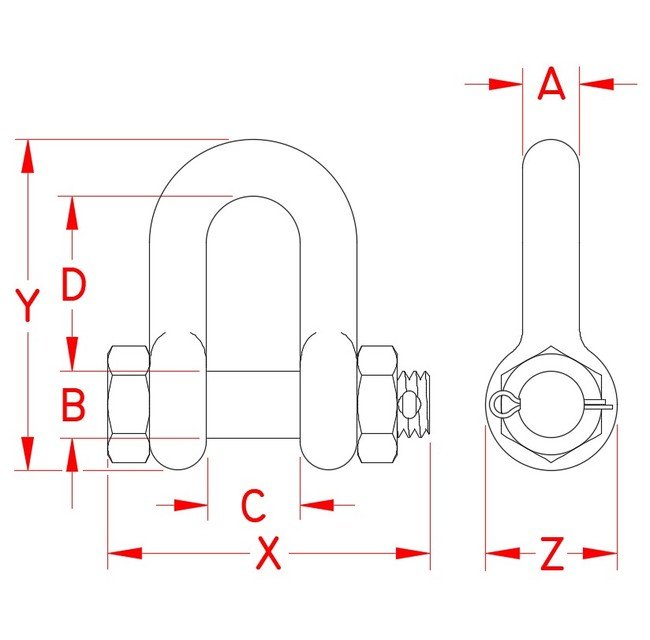

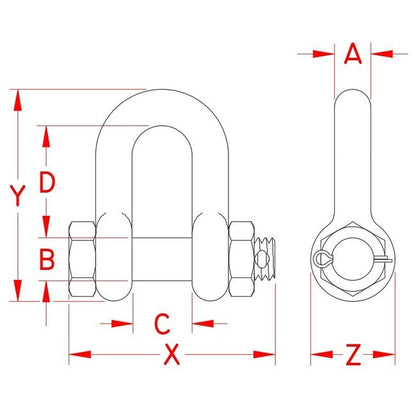

Specifications Dimension A

5/8 in

Specifications Dimension B

0.75 in

Specifications Dimension C

1.05 in

Specifications Dimension D

1.94 in

Specifications Dimension X

3.61 in

Specifications Dimension Y

3.64 in

Specifications Dimension Z

1.45 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

1.31 lb

Specifications Working Load Limit Wll

4,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
