316 Stainless Steel Bolt Chain Shackle

316 Stainless Steel Bolt Chain Shackle

SKU:STA-f88a1a

Premium 316 stainless steel Bolt Chain Shackle for industrial and marine use. Offers 8,000 lb Working Load Limit and meets ASME and MIL standards.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

316 Stainless Steel Bolt Chain Shackle

316 Stainless Steel Bolt Chain Shackle

$79.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bolt Chain Shackle

316 Stainless Steel Bolt Chain Shackle

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

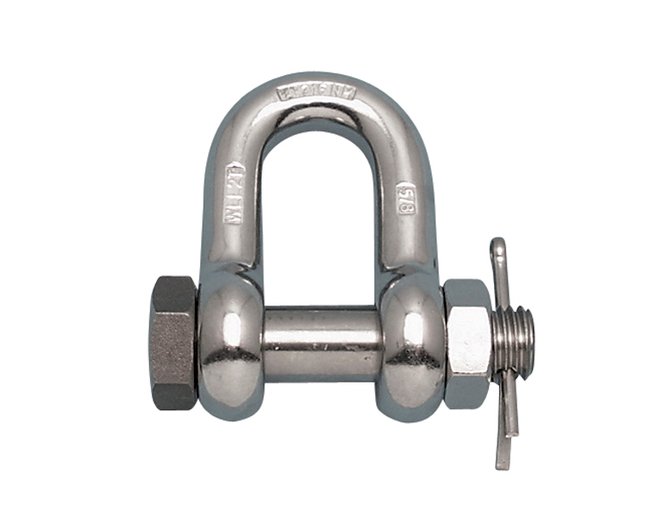

The 316 Stainless Steel Bolt Chain Shackle is a premium industrial and marine-grade shackle designed for maximum durability and corrosion resistance. Featuring a drop-forged construction and oversized bolt, this Suncor shackle has a Working Load Limit of 8,000 lb. Compliant with ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and MIL-DTL-32655 Type IVB, it meets stringent industry standards. Ideal for heavy-duty applications requiring reliable load support and long-lasting performance.

Product Specifications

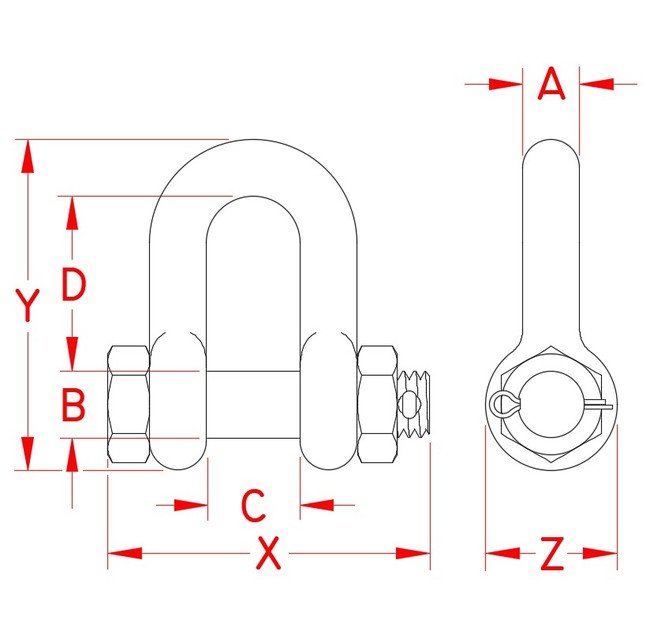

Specifications Dimension A
7/8 in
Specifications Dimension B
1.01 in
Specifications Dimension C
1.45 in
Specifications Dimension D
2.88 in
Specifications Dimension X
4.84 in
Specifications Dimension Y
5.25 in
Specifications Dimension Z
1.94 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
3.41 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
