316 Stainless Steel Bolt Chain Shackle - Suncor

Name: 316 Stainless Steel Bolt Chain Shackle - Suncor
Brand: Suncor Stainless, Inc.
SKU: STA-99c225
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-99c225

Premium 316 Stainless Steel Bolt Chain Shackle for heavy-duty applications, compliant with industry standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

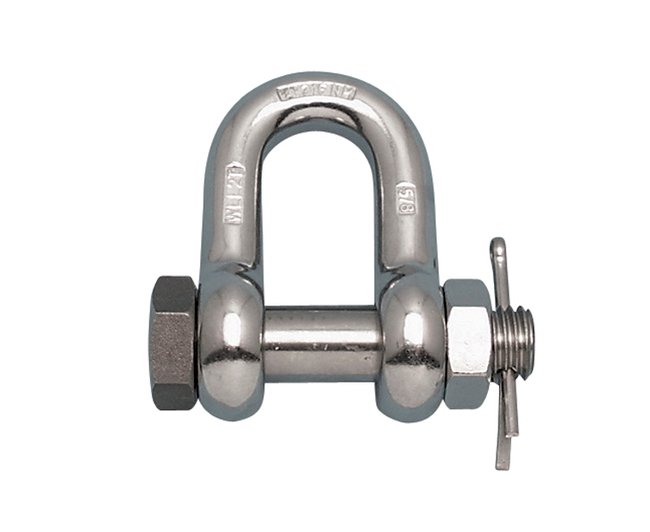

The 316 Stainless Steel Bolt Chain Shackle by Suncor is a premium-quality shackle designed for maximum corrosion resistance in industrial and marine environments. Featuring a drop-forged construction and an oversize bolt, this shackle offers outstanding strength and durability. With a working load limit of 1000 lb, it is suitable for a wide range of heavy-duty applications. Compliant with ASME B30.26-2010, Class 3, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVB standards, this shackle is a top choice for government and institutional buyers seeking reliability and performance.

Product Specifications

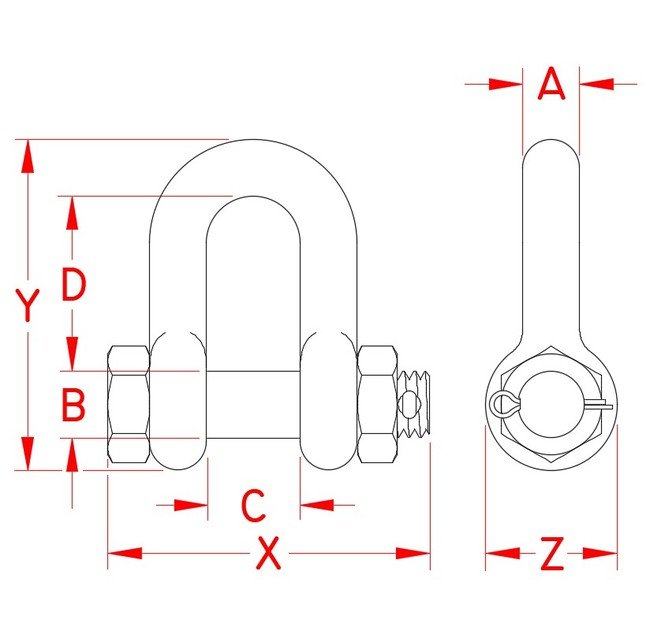

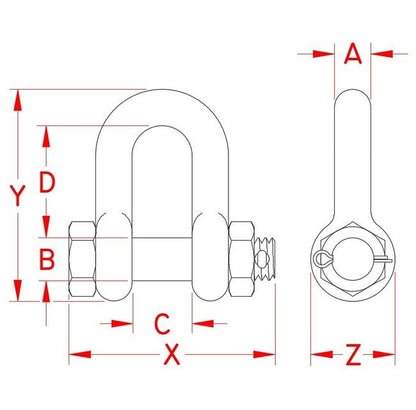

Specifications Dimension A

1/4 in

Specifications Dimension B

0.31 in

Specifications Dimension C

0.46 in

Specifications Dimension D

0.87 in

Specifications Dimension X

1.59 in

Specifications Dimension Y

1.55 in

Specifications Dimension Z

0.61 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.1 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
