316 Stainless Steel Bow Shackle with Captive Pin

Name: 316 Stainless Steel Bow Shackle with Captive Pin
Brand: Suncor Stainless, Inc.
SKU: STA-4f70e0
Price: 12.99 USD
Availability: OutOfStock

SKU:STA-4f70e0

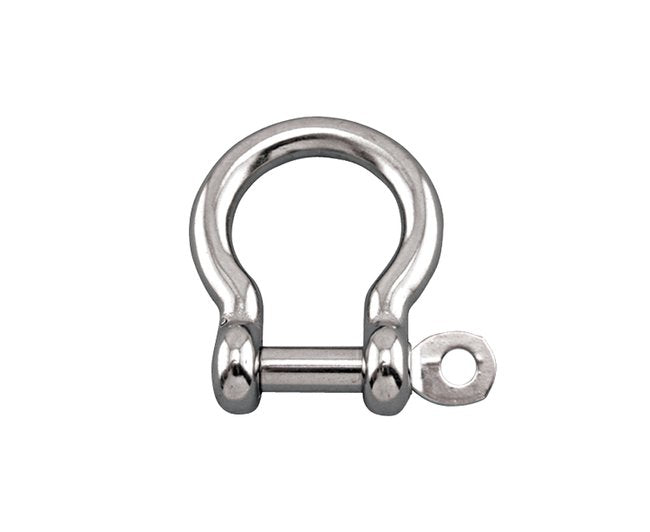

Grade 316 stainless steel Bow Shackle with self-locking captive pin for secure marine use.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Crafted from grade 316 stainless steel, this Bow Shackle features a captive pin with a secure self-locking mechanism to prevent accidental release. Perfect for marine applications, the pin is permanently attached to the shackle body, ensuring it won't get lost in water. Available in various sizes from 5/32" to 15/32", this precision-cast shackle guarantees maximum corrosion resistance and durability for reliable performance in demanding environments.

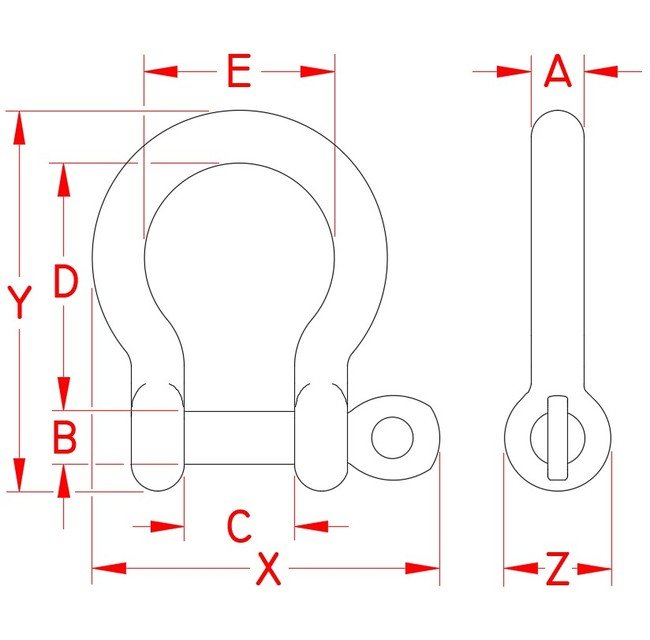

Product Specifications

Specifications Dimension A

3/16 in

Specifications Dimension B

0.19 in

Specifications Dimension C

0.43 in

Specifications Dimension D

0.94 in

Specifications Dimension E

0.65 in

Specifications Dimension X

1.15 in

Specifications Dimension Y

1.41 in

Specifications Dimension Z

0.39 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.03 lb

Specifications Working Load Limit Wll

500 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
