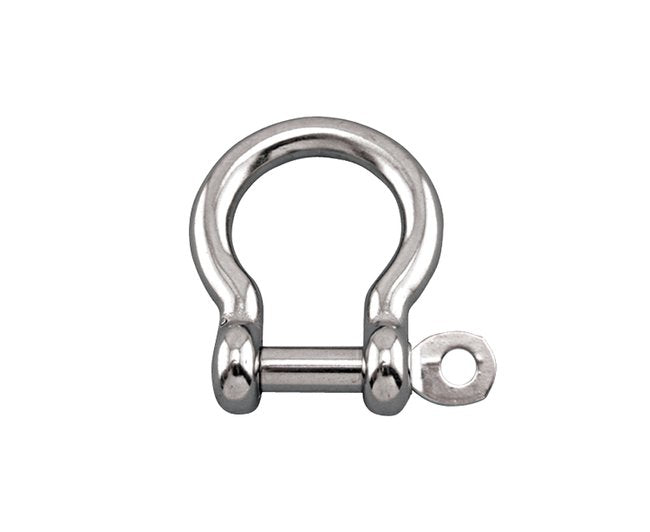

316 Stainless Steel Bow Shackle with Captive Pin

316 Stainless Steel Bow Shackle with Captive Pin

SKU:STA-c32eae

Premium-grade 316 Stainless Steel Bow Shackle with Captive Pin for marine and industrial applications. Self-locking pin for enhanced safety.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316 Stainless Steel Bow Shackle with Captive Pin

316 Stainless Steel Bow Shackle with Captive Pin

$29.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bow Shackle with Captive Pin

316 Stainless Steel Bow Shackle with Captive Pin

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Bow Shackle with Captive Pin is a premium-grade shackle designed for marine applications and industrial use. Featuring a captive pin with a self-locking mechanism, this shackle ensures enhanced safety by preventing accidental disengagement. Crafted from grade 316 stainless steel, it offers superior corrosion resistance and durability. Available in various sizes, from 5/32" to 15/32", this precision-cast shackle meets the highest quality standards, making it ideal for rigorous marine and industrial environments.

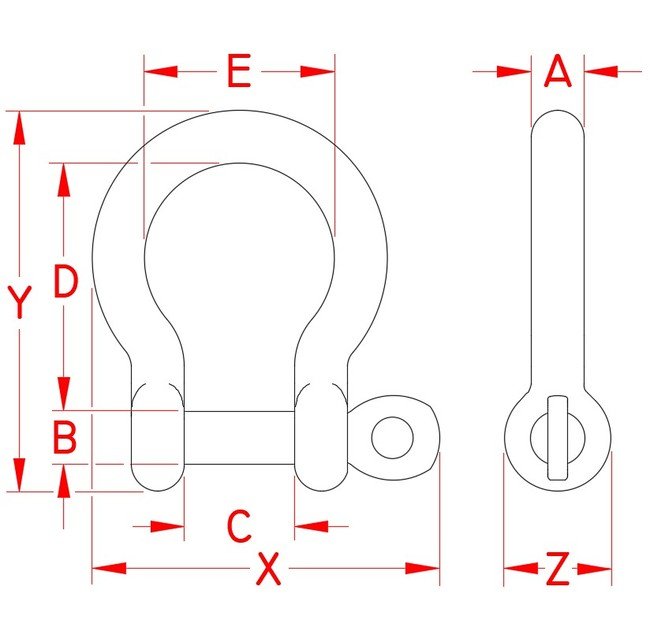

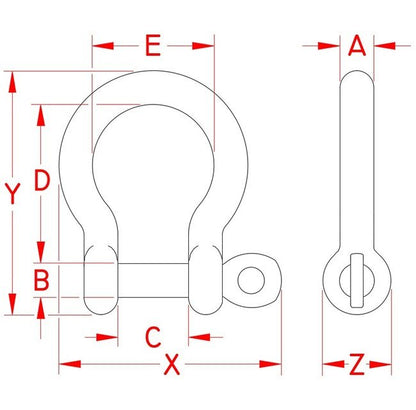

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
0.47 in
Specifications Dimension C
0.94 in
Specifications Dimension D
2.16 in
Specifications Dimension E
1.60 in
Specifications Dimension X
2.58 in
Specifications Dimension Y
3.31 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.5 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
