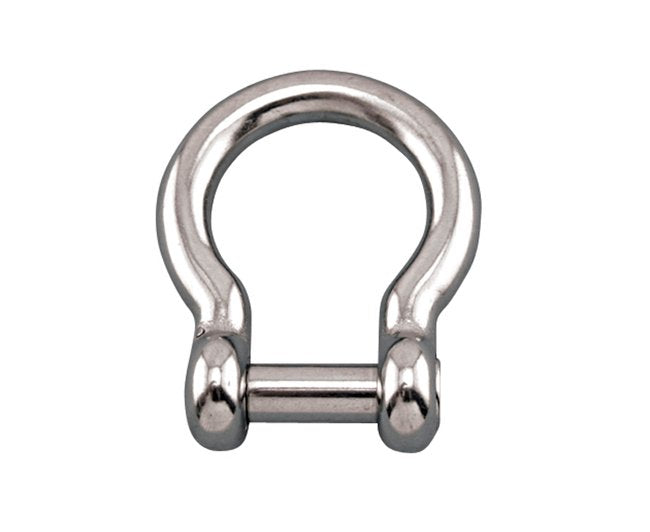

316 Stainless Steel Bow Shackle with Flush No Snag Pin
316 Stainless Steel Bow Shackle with Flush No Snag Pin
SKU:STA-c326e7
Premium 316 Stainless Steel Bow Shackle designed for marine & industrial applications with Flush No Snag Pin.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316 Stainless Steel Bow Shackle with Flush No Snag Pin
$24.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Bow Shackle with Flush No Snag Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316 Stainless Steel Bow Shackle with Flush No Snag Pin is meticulously crafted for marine and industrial use. Featuring a no snag pin that seamlessly aligns with the shackle body, this premium-grade shackle ensures maximum corrosion resistance and durability. Available in sizes from 1/4" to 1", it is ideal for heavy-duty applications requiring reliable performance in harsh environments.
Product Specifications

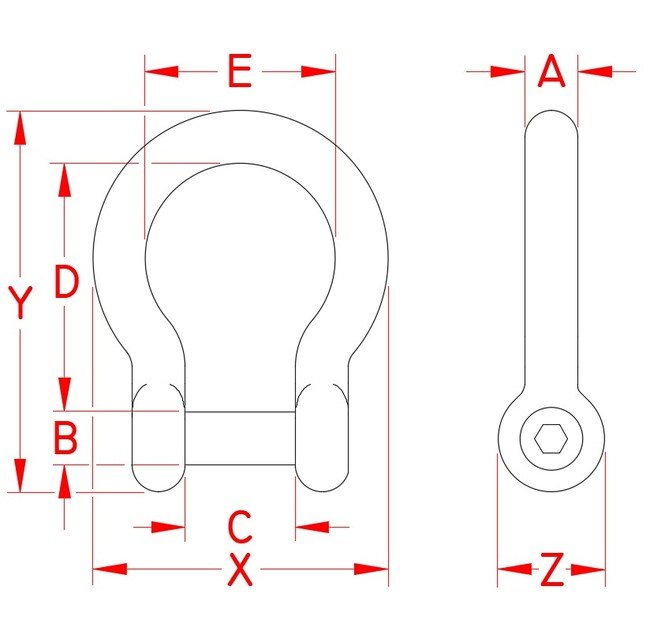

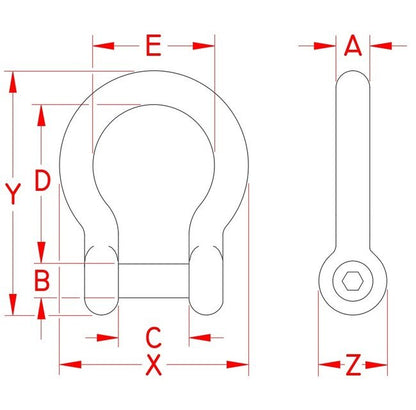

Specifications Dimension A
15/32 in
Specifications Dimension B
0.48 in
Specifications Dimension C
0.94 in
Specifications Dimension D
2.16 in
Specifications Dimension E
1.60 in
Specifications Dimension X
2.56 in
Specifications Dimension Y
3.31 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.45 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
