316 Stainless Steel Bow Shackle with Screw Pin
316 Stainless Steel Bow Shackle with Screw Pin
SKU:STA-d385ae
Explore our 316 Stainless Steel Bow Shackle with Screw Pin for marine and industrial needs. Corrosion-resistant, durable, and with a 500 lb WLL.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
316 Stainless Steel Bow Shackle with Screw Pin
$22.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Bow Shackle with Screw Pin
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

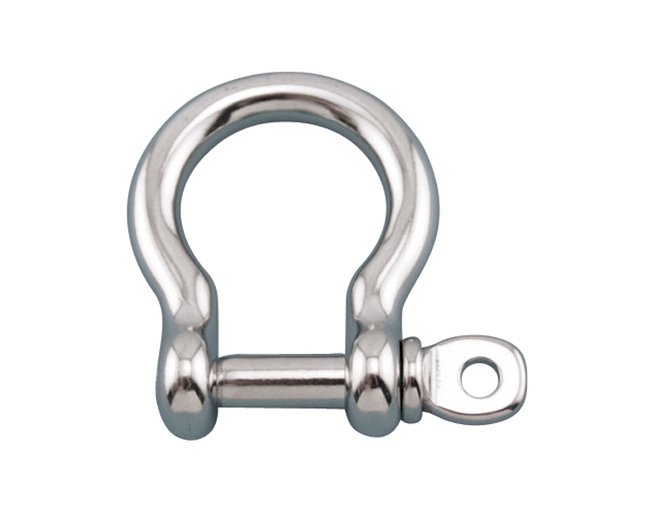

The 316 Stainless Steel Bow Shackle with Screw Pin, available in sizes from 5/32" to 1-1/4", is crafted for exceptional corrosion resistance and durability. Precision cast from grade 316 stainless steel, it excels in marine and industrial settings. With a 500 lb Working Load Limit, this shackle by Suncor offers reliable performance, making it a top choice for demanding applications.
Product Specifications

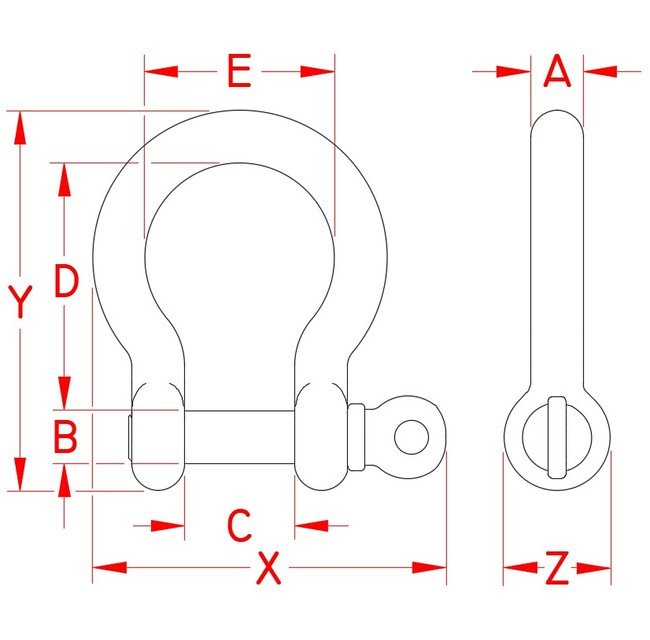

Specifications Dimension A
3/16 in
Specifications Dimension B
0.19 in
Specifications Dimension C
0.43 in
Specifications Dimension D
0.94 in
Specifications Dimension E
0.65 in
Specifications Dimension X
1.32 in
Specifications Dimension Y
1.41 in
Specifications Dimension Z
0.39 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.04 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
