316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

SKU:STA-ce1c91

Premium 316 Stainless Steel Rope Sheave for Marine & Industrial Rigging, Suncor Exclusive, 1500 lb WLL

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

$59.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

316 Stainless Steel Bushing Rope Sheave for Marine & Industrial Rigging

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

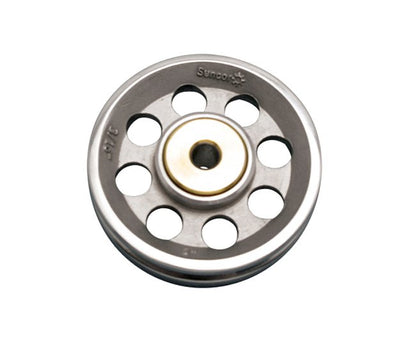

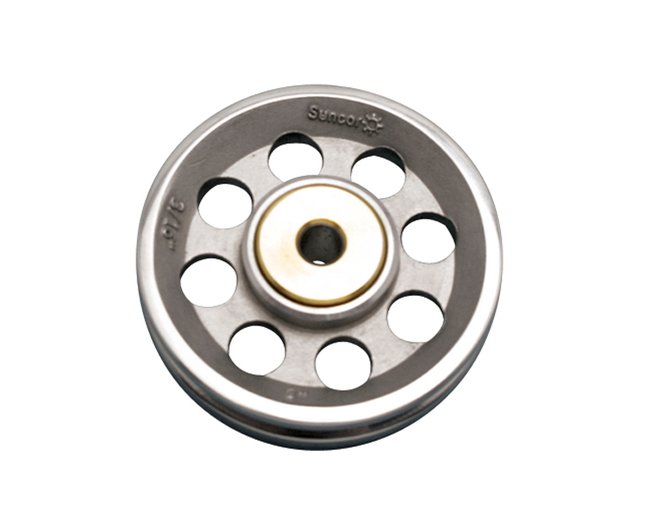

The 316 Stainless Steel Bushing Rope Sheave is expertly crafted with a bronze bushing to accommodate rope sizes from 1/4" to 1" with precision. Constructed from premium grade 316 stainless steel, this sheave ensures unparalleled corrosion resistance and durability, making it perfect for marine and industrial rigging applications. With a working load limit of 1500 lb, Suncor's exclusive precision cast design and patented technology guarantee exceptional performance and reliability for every project.

Product Specifications

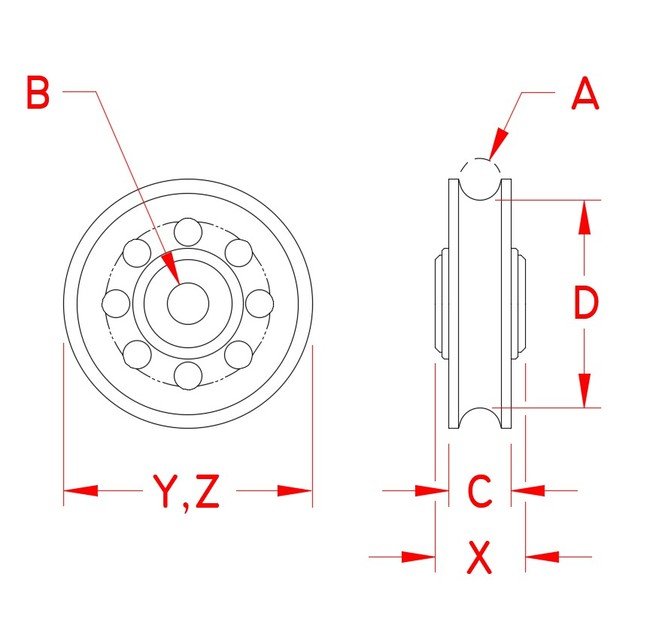

Specifications Dimension A
1/2 in
Specifications Dimension B
3/4 in
Specifications Dimension C
0.72 in
Specifications Dimension D
2.75 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
3.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.84 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
