316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

SKU:STA-80bee0

Premium Suncor 316 Stainless Steel Bushing Rope Sheave for marine and industrial rigging applications. Maximum durability and 1500 lb WLL.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

$89.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

316 Stainless Steel Bushing Rope Sheave - Suncor Marine and Industrial Rigging Equipment

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

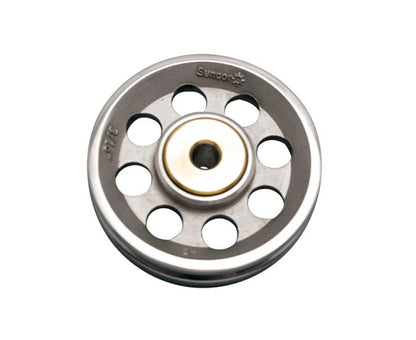

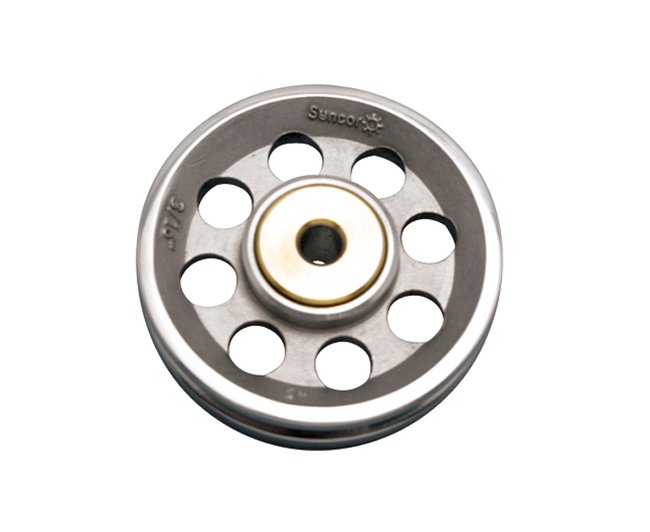

Upgrade your rigging projects with the Suncor 316 Stainless Steel Bushing Rope Sheave. This sheave is crafted from precision cast grade 316 stainless steel, providing unrivaled corrosion resistance and durability. With a bronze bushing accommodating rope sizes from 1/4" to 1", it ensures a secure fit for diverse applications. Designed for marine and industrial use, this sheave is ideal for heavy-duty tasks, delivering a working load limit of 1500 lb. Trust in Suncor's exclusive and patented design to elevate your rigging efficiency and longevity.

Product Specifications

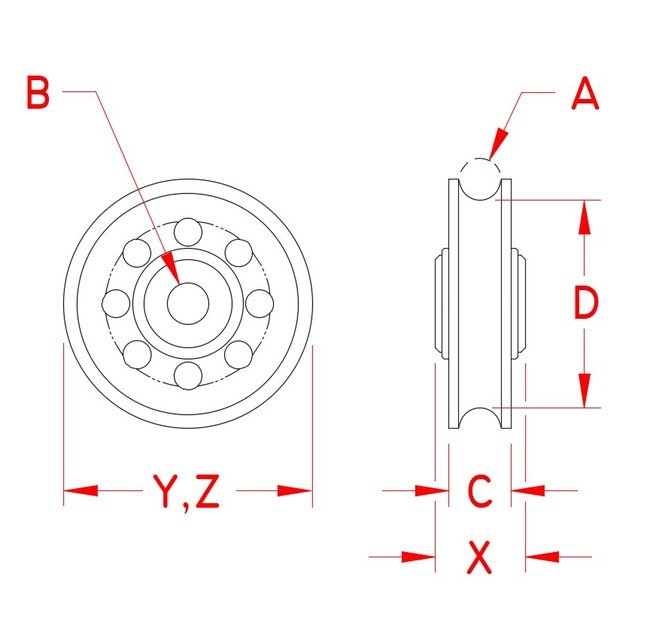

Specifications Dimension A
7/16 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.72 in
Specifications Dimension D
2.81 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
3.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.84 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
