316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

SKU:STA-a5565a

Premium grade 316 stainless steel bushing sheave for marine and industrial rigging, offering exceptional durability and corrosion resistance.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

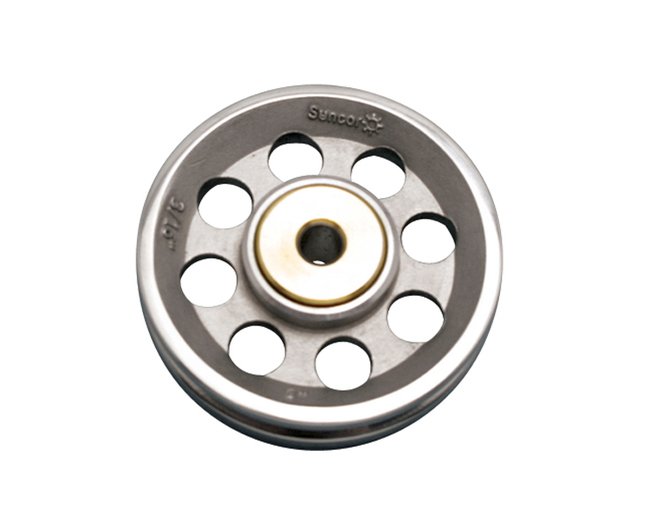

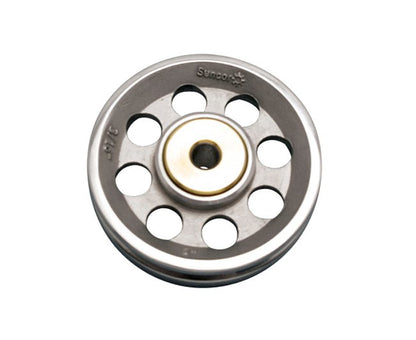

The 316 Stainless Steel Bushing Rope Sheave by Suncor is the pinnacle of marine and industrial rigging excellence. Crafted with precision-cast, marine-grade 316 stainless steel, this sheave offers unparalleled corrosion resistance and durability. With a working load limit of 3000 lb and dimensions meticulously designed for optimal performance, this sheave accommodates rope sizes from 1/4" to 1". Suncor's exclusive design features ensure reliability and longevity in every project, making it an ideal choice for demanding marine and industrial applications.

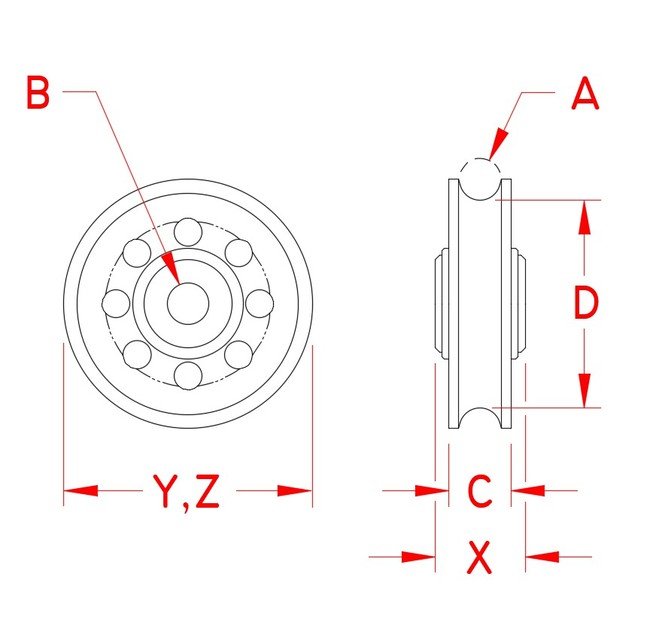

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
5/8 in
Specifications Dimension C
0.94 in
Specifications Dimension D
3.63 in
Specifications Dimension X
1.13 in
Specifications Dimension Y
4.25 in
Specifications Dimension Z
4.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
1.55 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
