316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

SKU:STA-ec42a5

Premium 316 Stainless Steel Rope Sheave for marine & industrial rigging. Corrosion-resistant & durable. Ideal for 1/4" to 1" ropes.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$79.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

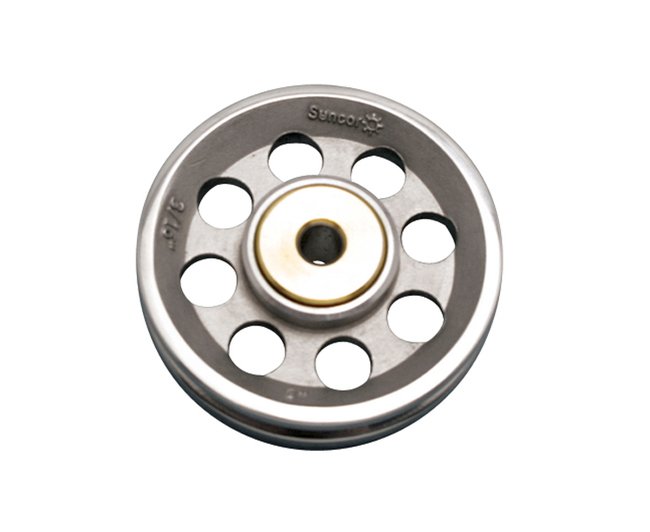

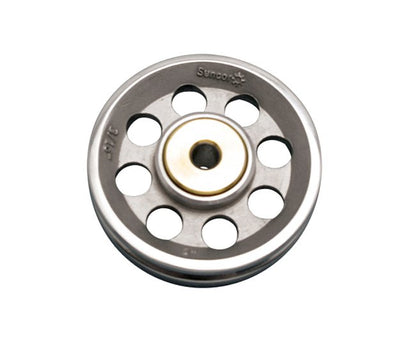

The 316 Stainless Steel Bushing Rope Sheave by Suncor is a high-performance marine-grade pulley designed for reliability in demanding marine and industrial rigging applications. Featuring a bronze bushing and constructed from precision-cast grade 316 stainless steel, this sheave ensures exceptional corrosion resistance and durability. With dimensions compatible for rope sizes ranging from 1/4" to 1", a working load limit of 8,000 lb, and exclusive Suncor patent, this sheave guarantees precision and strength for every project.

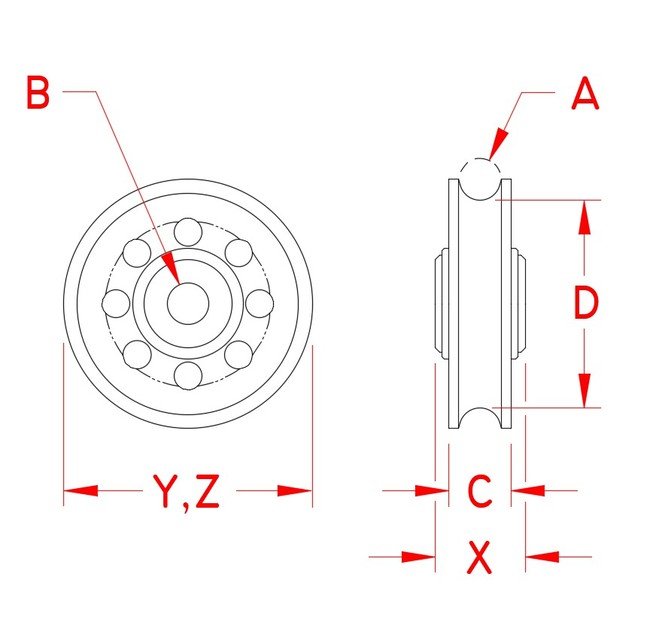

Product Specifications

Specifications Dimension A
1 in
Specifications Dimension B
1/2 in
Specifications Dimension C
1.38 in
Specifications Dimension D
5.25 in
Specifications Dimension X
1.63 in
Specifications Dimension Y
6.25 in
Specifications Dimension Z
6.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
4.84 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
