316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

SKU:STA-a29398

Enhance marine rigging with Suncor's 316 Stainless Steel Bushing Rope Sheave: durable, corrosion-resistant, and precise for 1/4"-1" ropes.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$79.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

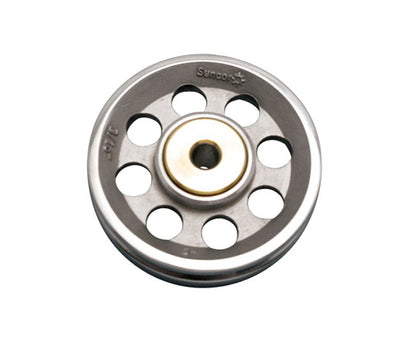

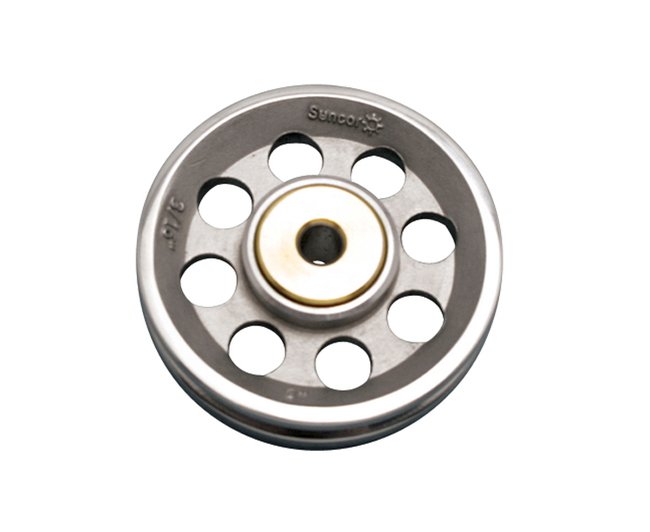

Upgrade your marine and industrial rigging projects with the Suncor 316 Stainless Steel Bushing Rope Sheave. This premium sheave features a bronze bush for smooth operation and accommodates rope sizes from 1/4" to 1". Crafted from grade 316 stainless steel for superior corrosion resistance, precision cast for durability, and boasting a working load limit of 5,000 lb, this sheave ensures reliable performance. Exclusive Suncor design with patented features, imported, and weighing 2.65 lb, this sheave is a must-have for high-performance applications.

Product Specifications

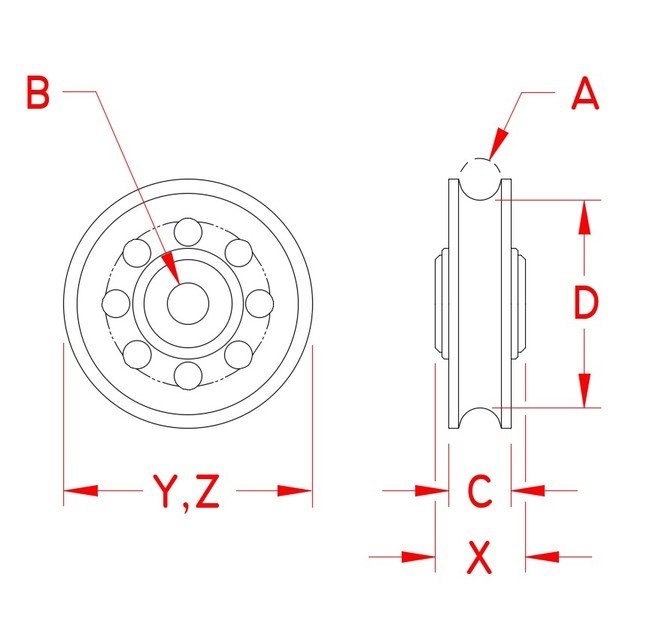

Specifications Dimension A
3/4 in
Specifications Dimension B
5/8 in
Specifications Dimension C
1.13 in
Specifications Dimension D
4.50 in
Specifications Dimension X
1.38 in
Specifications Dimension Y
5.25 in
Specifications Dimension Z
5.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
2.65 lb
Specifications Working Load Limit Wll
5,000 lb
