316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

SKU:STA-7ee740

Premium 316 Stainless Steel Bushing Rope Sheave - Marine Grade, Ideal for Rigging Projects

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

$34.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

316 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade Precision Cast Sheave

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your rigging projects with the Suncor 316 Stainless Steel Bushing Rope Sheave. This premium sheave features a bronze bushing to accommodate rope sizes from 1/4" to 1", ensuring a precise fit. Crafted from marine-grade 316 stainless steel, this sheave delivers unparalleled corrosion resistance and durability, making it ideal for marine and industrial applications. Benefit from Suncor's precision cast design, exclusive quality, and patented technology for reliable performance in demanding environments.

Product Specifications

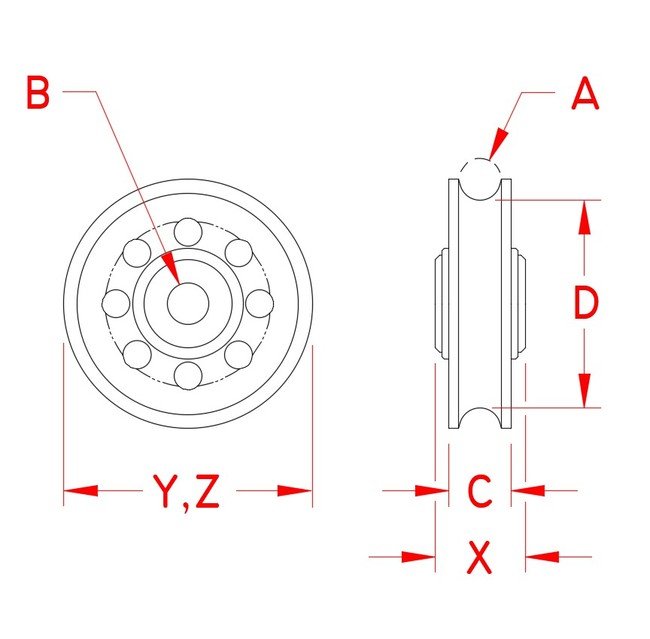

Specifications Dimension A
3/8 in
Specifications Dimension B
3/8 in
Specifications Dimension C
056 in
Specifications Dimension D
1.88 in
Specifications Dimension X
0.82 in
Specifications Dimension Y
2.25 in
Specifications Dimension Z
2.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.34 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
