316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

SKU:STA-66695b

High-performance 316 Stainless Steel Wire Rope Sheave for marine and industrial rigging needs. Durable, corrosion-resistant, with Suncor quality.

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

$99.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

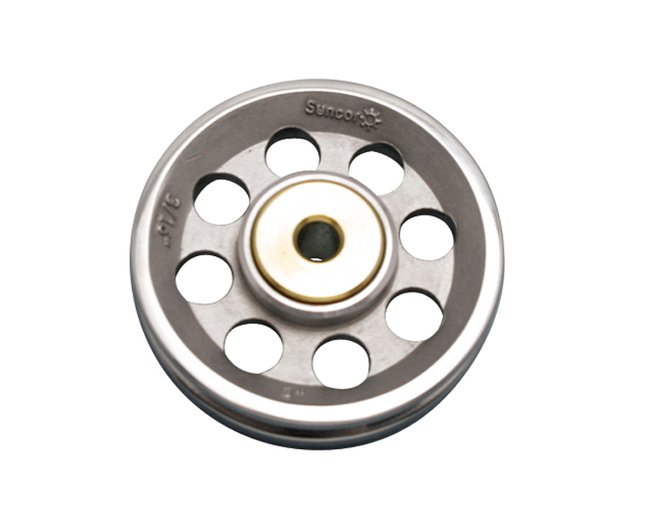

The 316 Stainless Steel Bushing Wire Rope Sheave is designed for marine and industrial rigging applications, offering exceptional durability and corrosion resistance. Featuring a bronze bushing, this sheave accommodates wire rope sizes from 3/32" to 3/8". With a precision cast construction and a working load limit of 8,000 lb, this sheave is a reliable choice for heavy-duty tasks. Suncor's exclusive design and patent ensure top-notch quality and performance.

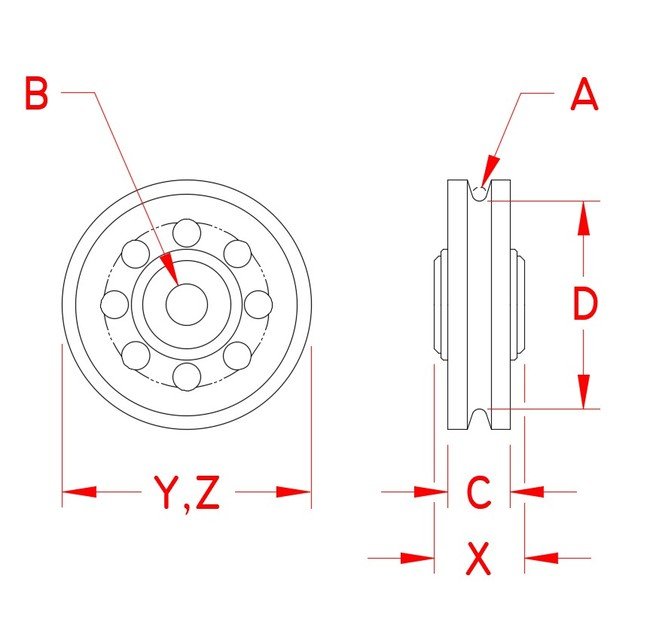

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
3/4 in
Specifications Dimension C
1.38 in
Specifications Dimension D
5.25 in
Specifications Dimension X
1.63 in
Specifications Dimension Y
6.25 in
Specifications Dimension Z
6.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
5.59 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
