316 Stainless Steel Bushing Wire Rope Sheave

Name: 316 Stainless Steel Bushing Wire Rope Sheave
Brand: Suncor Stainless, Inc.
SKU: STA-bedcb5
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-bedcb5

Enhance rigging efficiency with our 316 Stainless Steel Bushing Wire Rope Sheave, ideal for marine and industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

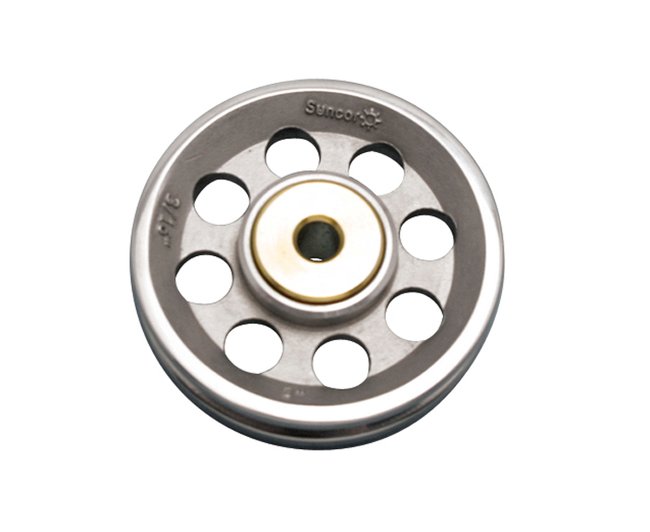

Upgrade your rigging operations with the 316 Stainless Steel Bushing Wire Rope Sheave. This premium-grade sheave boasts a bronze bushing, accommodating wire rope sizes from 3/32" to 3/8". Crafted from durable grade 316 stainless steel, it offers exceptional corrosion resistance, making it perfect for marine and industrial applications. Suncor's precision cast engineering ensures reliability and performance, with a Working Load Limit (WLL) of 1000 lb. Trust in this Suncor exclusive and patented product for robust, long-lasting rigging solutions.

Product Specifications

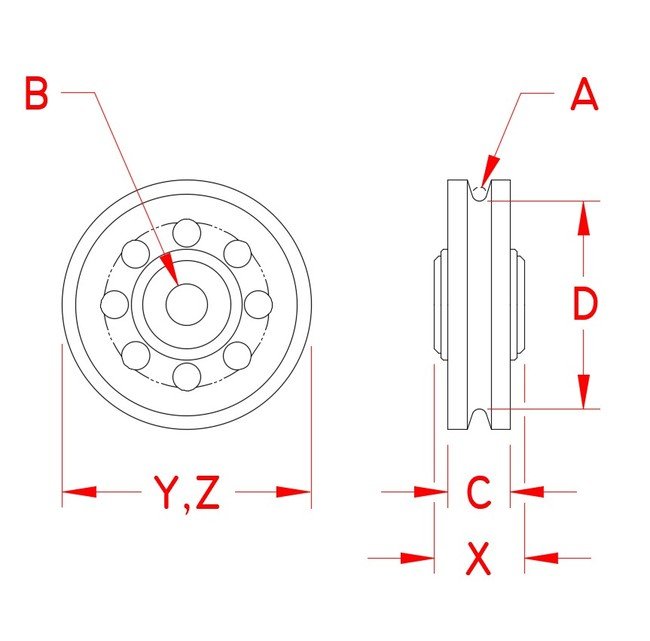

Specifications Dimension A

3/32+ 1/8 in

Specifications Dimension B

3/8 in

Specifications Dimension C

0.56 in

Specifications Dimension D

1.88 in

Specifications Dimension X

0.82 in

Specifications Dimension Y

2.25 in

Specifications Dimension Z

2.25 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Suncor Patent

Yes

Specifications Weight

0.39 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

333923

PSC

3020

316 Stainless Steel Bushing Wire Rope Sheave
