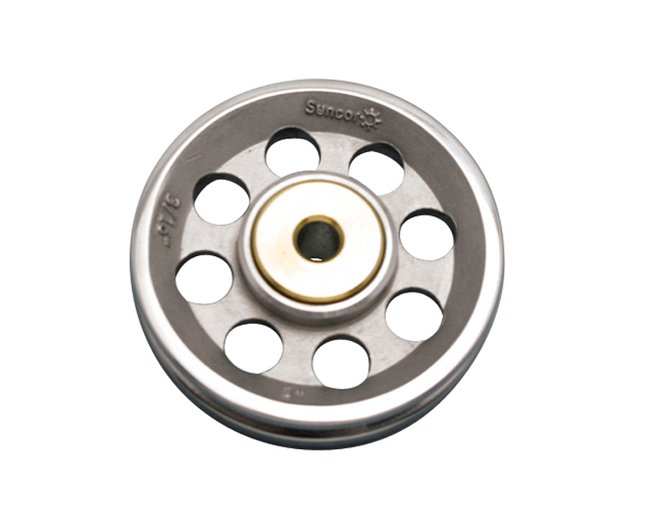

The 316 Stainless Steel Bushing Wire Rope Sheave is a high-quality marine and industrial rigging component. Featuring a bronze bushing, this sheave accommodates wire rope sizes between 3/32" to 3/8". Crafted from grade 316 stainless steel, it ensures superior corrosion resistance and durability. With a maximum working load limit of 5,000 lb, precision-cast construction, and exclusive Suncor design, this sheave guarantees reliability in demanding applications.
Product Specifications

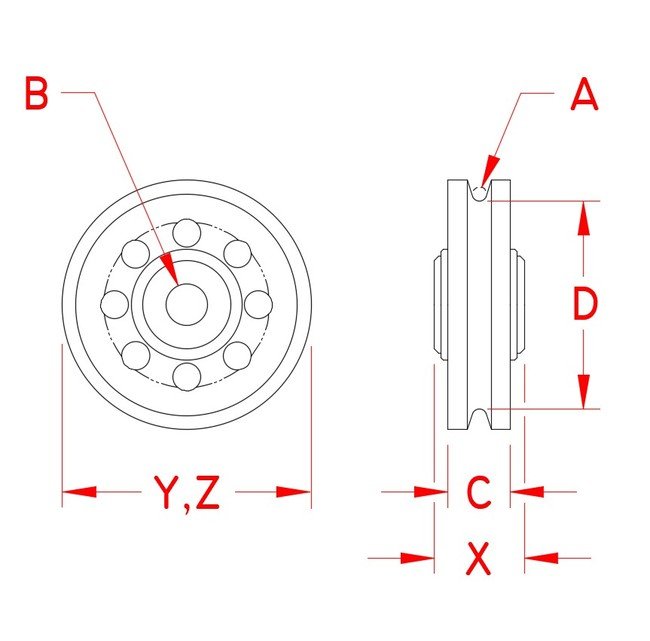

Specifications Dimension A
5/16 in
Specifications Dimension B
5/8 in
Specifications Dimension C
1.13 in
Specifications Dimension D
4.38 in
Specifications Dimension X
1.38 in
Specifications Dimension Y
5.25 in
Specifications Dimension Z
5.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
2.97 lb
Specifications Working Load Limit Wll
5,000 lb
