316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

SKU:STA-3f8af5

Durable 316 stainless steel wire rope sheave with precision cast bronze bushing, ideal for marine and industrial rigging applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

$49.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Wire Rope Sheave

316 Stainless Steel Bushing Wire Rope Sheave

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

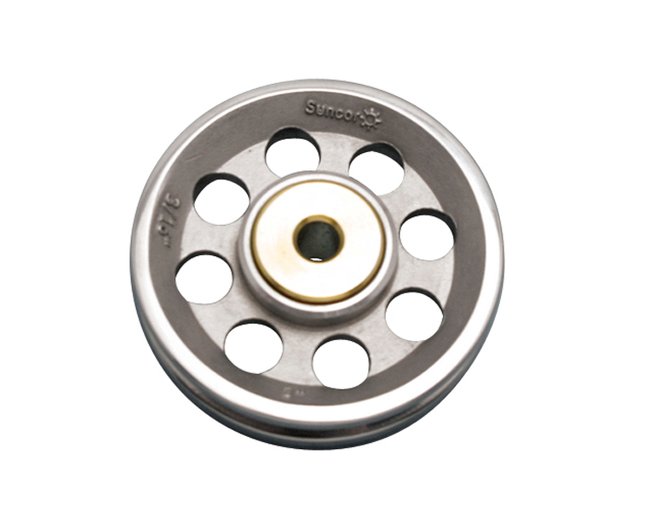

The 316 Stainless Steel Bushing Wire Rope Sheave is a high-quality marine and industrial rigging component designed for durability and corrosion resistance. Featuring a precision cast bronze bushing, this sheave accommodates wire rope sizes from 3/32" to 3/8". With a Working Load Limit (WLL) of 1500 lb, this Suncor exclusive product is patented and made from grade 316 stainless steel. Ideal for demanding applications, it ensures reliable performance in harsh environments.

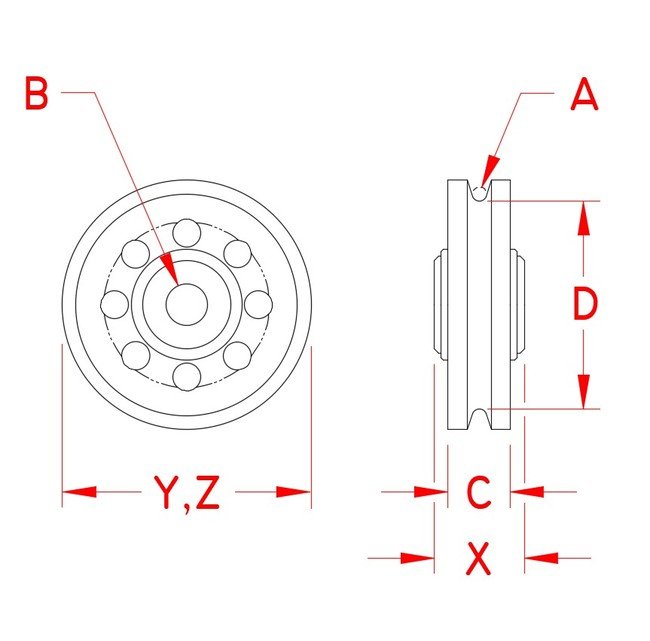

Product Specifications

Specifications Dimension A
3/16 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.72 in
Specifications Dimension D
2.75 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
3.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.91 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
