316 Stainless Steel Bushing Wire Rope Sheave - Suncor
316 Stainless Steel Bushing Wire Rope Sheave - Suncor
SKU:STA-9eafc5
Enhance rigging operations with precision-cast 316 stainless steel Wire Rope Sheave by Suncor. Ideal for marine & industrial use.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
316 Stainless Steel Bushing Wire Rope Sheave - Suncor
$44.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Bushing Wire Rope Sheave - Suncor
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

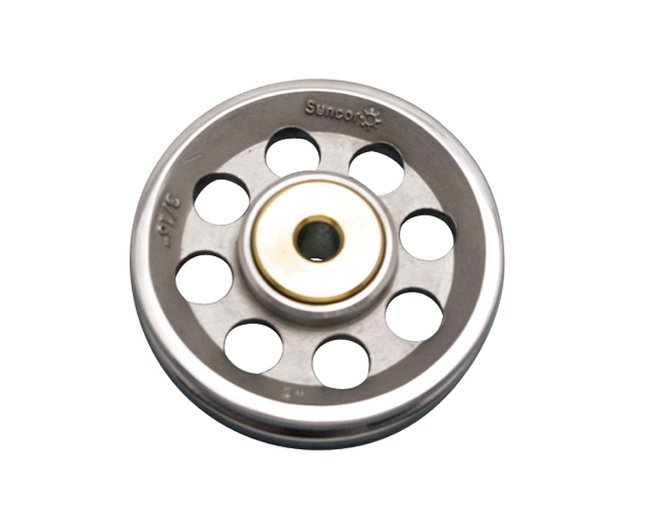

Upgrade your marine and industrial rigging operations with the precision-cast 316 stainless steel Bushing Wire Rope Sheave by Suncor. Featuring a durable bronze bushing, this sheave accommodates wire rope sizes from 3/32" to 3/8". With a Working Load Limit of 1500 lb, this Suncor exclusive product ensures maximum corrosion resistance and longevity, making it ideal for critical applications.

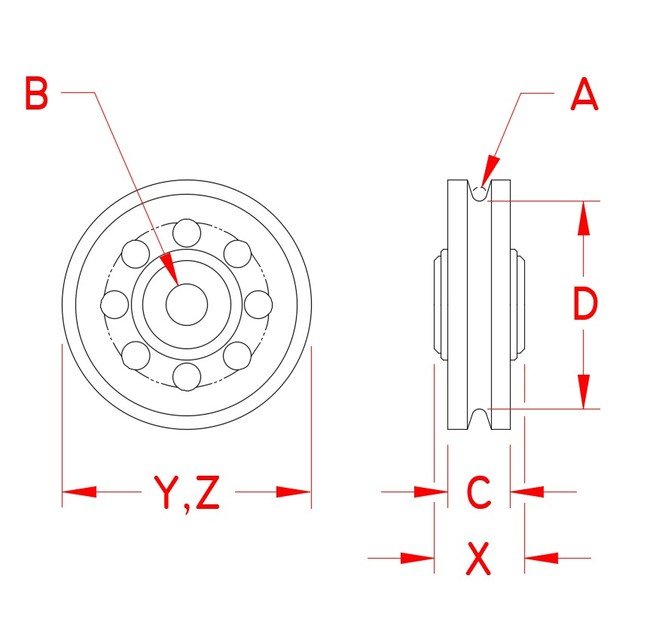

Product Specifications
Specifications Dimension A
3/16 in
Specifications Dimension B
1/2 in
Specifications Dimension C
0.72 in
Specifications Dimension D
2.75 in
Specifications Dimension X
0.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
3.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.89 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
