316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

SKU:STA-a7cc71

Premium 316 Stainless Steel Bushing Wire Rope Sheave for marine & industrial rigging, Suncor Exclusive

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

$39.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

316 Stainless Steel Bushing Wire Rope Sheave, Suncor Exclusive

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

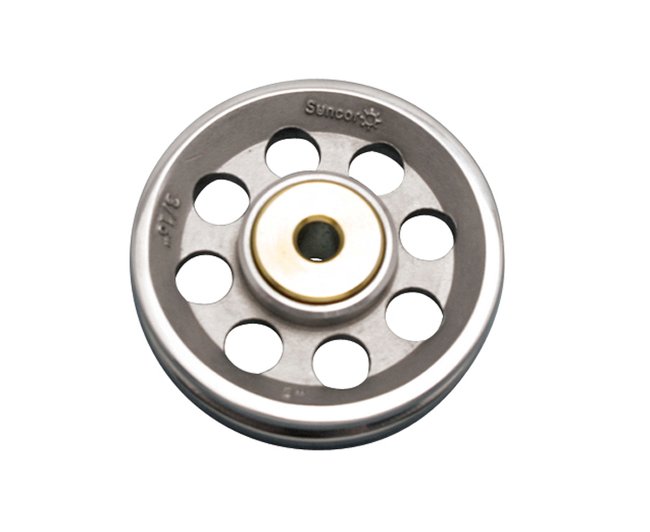

Upgrade your rigging system with the premium 316 Stainless Steel Bushing Wire Rope Sheave from Suncor. This precision-cast sheave features a bronze bushing, designed to accommodate wire rope sizes ranging from 3/32" to 3/8" with a Working Load Limit (WLL) of 1000 lb. Crafted from grade 316 stainless steel, this sheave provides exceptional corrosion resistance, making it ideal for marine and industrial applications. Suncor's patented design ensures reliability and durability, meeting the highest standards for quality and performance.

Product Specifications

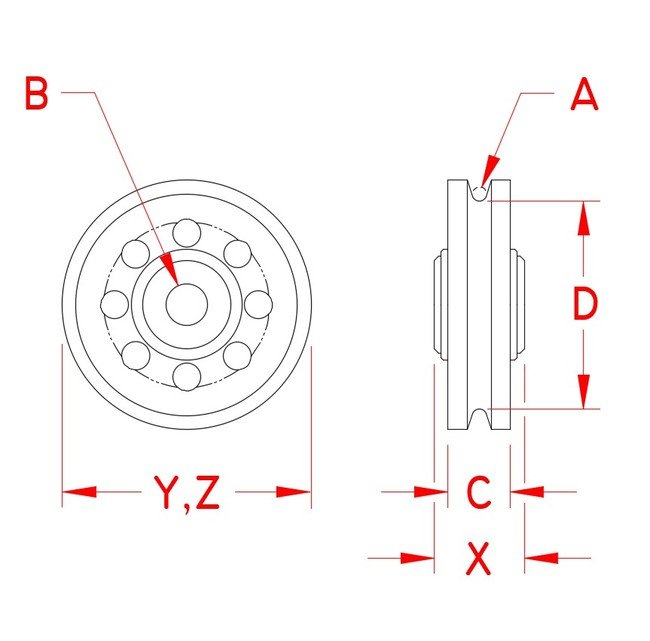

Specifications Dimension A
3/32+ 1/8 in
Specifications Dimension B
1/4 in
Specifications Dimension C
0.56 in
Specifications Dimension D
1.88 in
Specifications Dimension X
0.82 in
Specifications Dimension Y
2.25 in
Specifications Dimension Z
2.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
0.41 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
