316 Stainless Steel Captive Pin Headboard Shackle 3/8 Inch

Name: 316 Stainless Steel Captive Pin Headboard Shackle 3/8 Inch
Brand: Lexco Cable Manufacturing
SKU: WIR-44020c
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-44020c

Durable 316 Stainless Steel Captive Pin Headboard Shackle for secure & corrosion-resistant applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

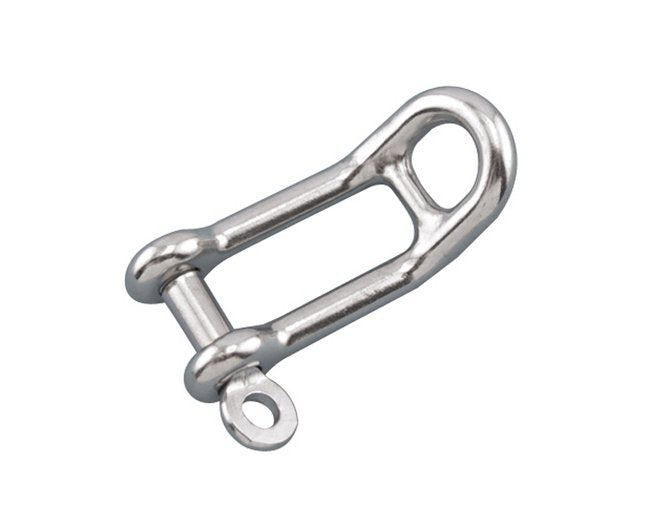

The 316 Stainless Steel Captive Pin Headboard Shackle in Size A 3/8 inch is a durable and reliable wire rope hardware essential. Precision cast and imported, this shackle features a captive pin that ensures secure closure. With a WLL of 1200 lb, this shackle is perfect for applications demanding strength and corrosion resistance. Its flush-sitting pin design adds extra safety, making it ideal for marine, industrial, and government use.

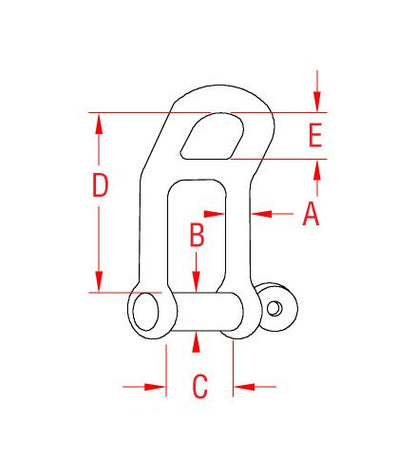

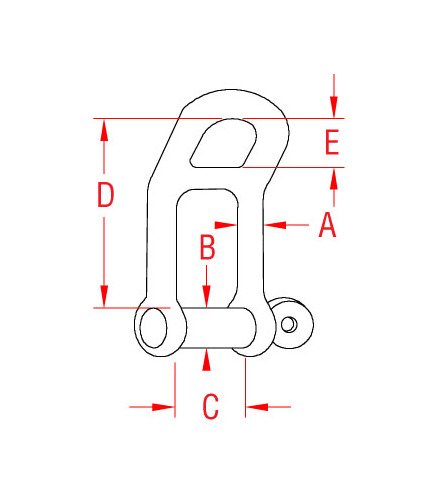

Product Specifications

Note 0

Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

Specifications C

0.78 "

Specifications D

2.80 "

Specifications Dimension B

0.47 "

Specifications E

0.74 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

Headboard Shackle

Specifications Size A

3/8 "

Specifications Weight

0.42 lb

Specifications Wll

1200 lb

CAGE

0T9L4

NAICS

332999

PSC

5340
