316 Stainless Steel Chain Shackle

Name: 316 Stainless Steel Chain Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-b24bb9
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-b24bb9

Durable 316 stainless steel chain shackle with 1,300 lb WLL. Ideal for industrial and marine applications. Meets ASME B30.26-2010 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

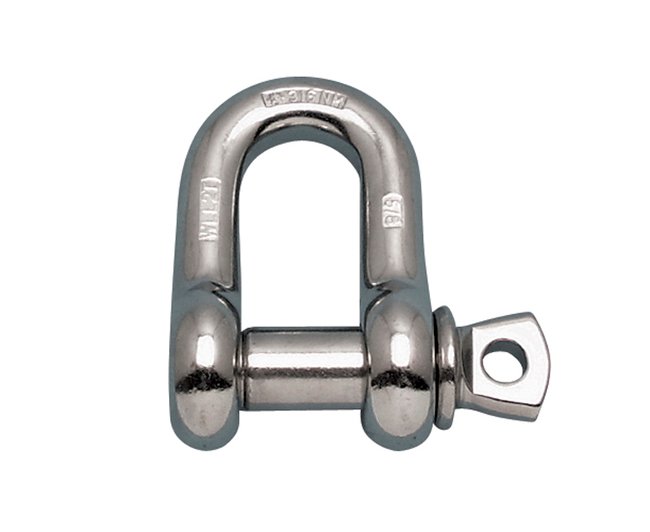

Upgrade your industrial and marine operations with our Suncor 316 stainless steel chain shackle. Designed with an oversize screw pin and crafted from grade 316-NM stainless steel, this shackle ensures maximum corrosion resistance. Meeting ASME B30.26-2010, Fed Spec RR-C-271, and MIL-DTL-32655 standards, this chain shackle is reliable and durable under heavy loads. The 1,300 lb Working Load Limit (WLL) and drop-forged fabrication make it ideal for various applications. Available in multiple sizes, it's a top choice for your rigging needs.

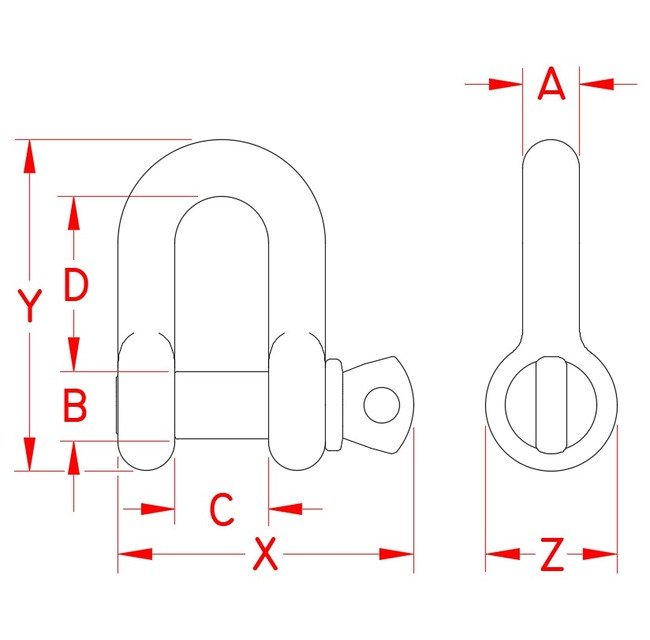

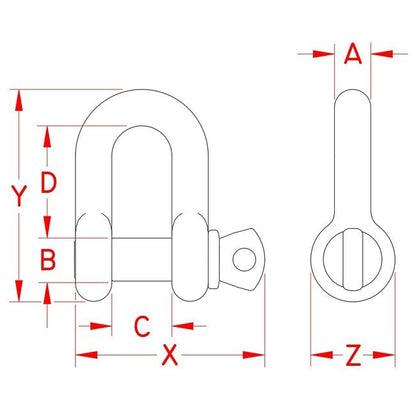

Product Specifications

Specifications Dimension A

5/16 in

Specifications Dimension B

0.38 in

Specifications Dimension C

0.52 in

Specifications Dimension D

1.02 in

Specifications Dimension X

1.71 in

Specifications Dimension Y

1.83 in

Specifications Dimension Z

0.71 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.15 lb

Specifications Working Load Limit Wll

1,300 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

316 Stainless Steel Chain Shackle
