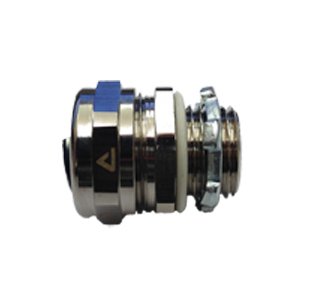

316 Stainless Steel Compact Fittings NPT - Straight, 1-1/4"

Name: 316 Stainless Steel Compact Fittings NPT - Straight, 1-1/4"
Brand: Anamet Electrical, Inc.
SKU: FIT-37595f
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-37595f

Durable AISI-316 Stainless Steel Fittings with sealing ring and lock nut for secure connections. UL LISTED, CSA, RoHS WEEE compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

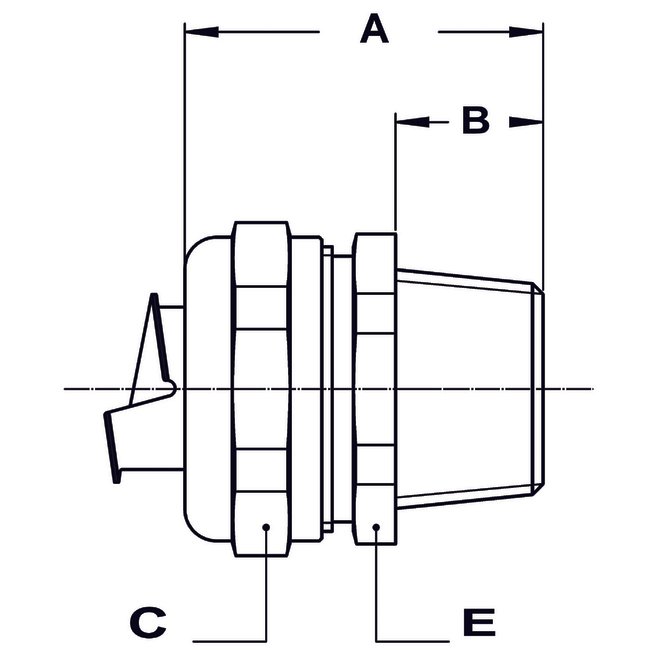

The AISI-316 Stainless Steel Compact Fittings NPT is a durable construction featuring 4 essential parts - counter nut, clamping ring, ferrule, and body. This fitting includes a sealing ring and stainless steel lock nut for secure box connections. Certified with UL LISTED, CSA, and RoHS WEEE compliance, it ensures reliability and safety in electrical installations. With dimensions of 1.653" (A), 0.59" (B), 2.086" (C), and 2.047" (E), this fitting provides a liquid-tight seal with an Ingress Protection (IP) Rating of 66/67. Ideal for various applications requiring a robust and corrosion-resistant connector.

Product Specifications

Specifications Connector Type

Straight

Specifications Core Material

Stainless Steel

Specifications Dimension A

1.653 in

Specifications Dimension B

0.59 in

Specifications Dimension C

2.086 in

Specifications Dimension E

2.047 in

Specifications Electrical Trade Size

1-1/4 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Jacket Benefits

Liquid Tight

Specifications Thread Type

1-1/4"

Specifications Type

Compact 316 Stainless Steel
