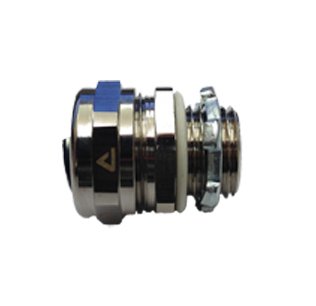

316 Stainless Steel Compact Fittings NPT - Straight 1/2 in
316 Stainless Steel Compact Fittings NPT - Straight 1/2 in
SKU:FIT-cb7b51
High-quality AISI-316 Stainless Steel Fittings for secure electrical connections, UL and CSA certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316 Stainless Steel Compact Fittings NPT - Straight 1/2 in
$24.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Compact Fittings NPT - Straight 1/2 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AISI-316 Stainless Steel Compact Fittings NPT offer exceptional durability and reliability for electrical connections. This four-part fitting includes a counter nut, clamping ring, ferrule, and body, with added sealing ring and stainless steel lock nut for secure installations. Certified by UL, CSA, and RoHS WEEE compliant, these fittings ensure safety and quality in electrical applications.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Stainless Steel

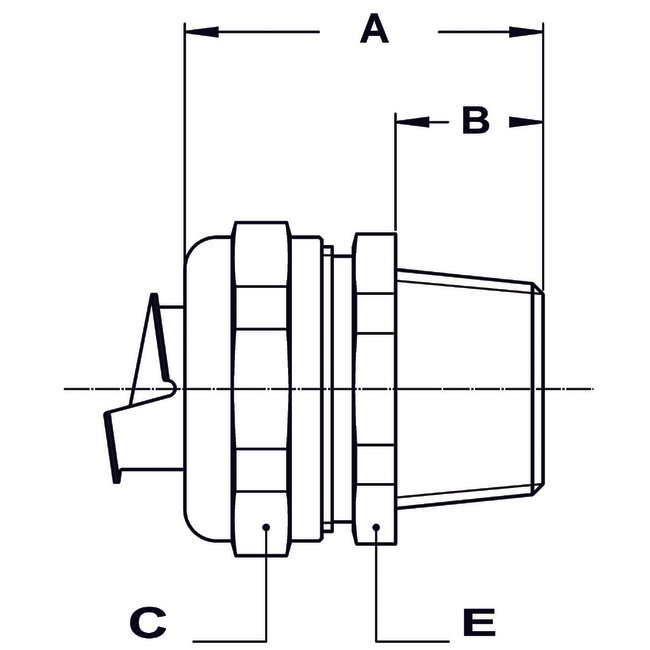

Specifications Dimension A
1.388 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.141 in
Specifications Dimension E
1.063 in
Specifications Electrical Trade Size
1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
1/2"
Specifications Type
Compact 316 Stainless Steel
