316 Stainless Steel D Shackle 1" Size A with No Snag Pin

Name: 316 Stainless Steel D Shackle 1" Size A with No Snag Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-3eadbe
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-3eadbe

Premium 316 Stainless Steel D Shackle with No Snag Pin - WLL 6,000 lb, Precision Cast, Flush Fit Design

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

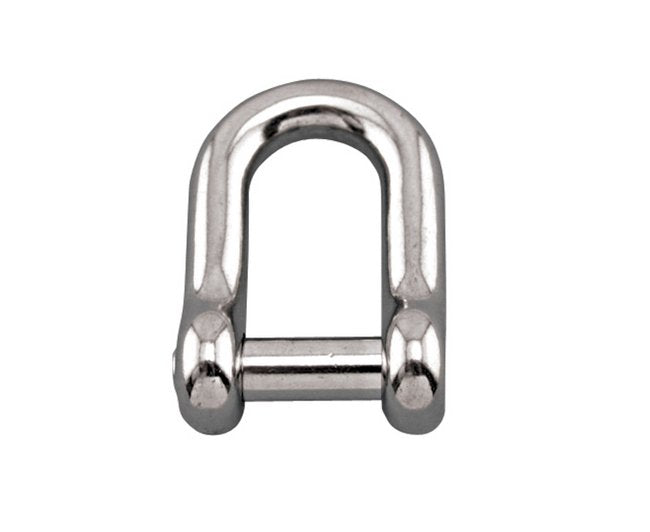

Enhance your wire rope loops for lifting or towing with our 316 Stainless Steel D Shackle in 1" Size A. Crafted from 316 stainless steel with a precision cast, this shackle offers a Working Load Limit (WLL) of 6,000 lb. The no snag pin design ensures a flush fit for seamless operations, while larger sizes feature a slotted head. SuncorÂ® recommends using a locking fluid with this shackle for added security.

Product Specifications

Note 0

No snag pin sits flush with body of shackle. Larger sizes with slotted head. suncorÂ® recommends the use of a locking fluid with this type of shackle.

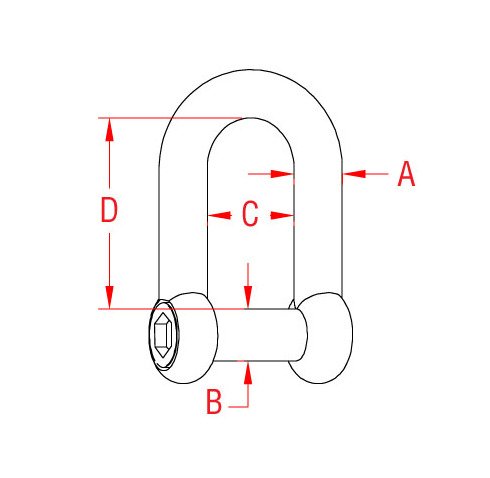

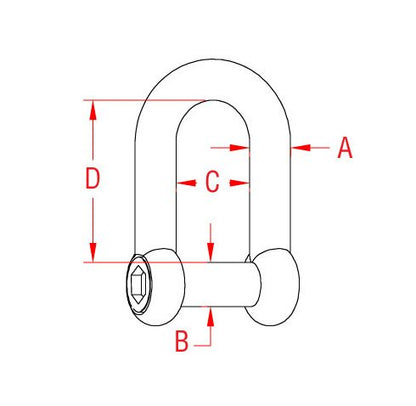

Specifications C

1.94 "

Specifications D

3.42 "

Specifications Dimension B

0.98 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

D Shackle

Specifications Size A

1 "

Specifications Snag Pin Availability

Specifications Weight

3.56 lb

Specifications Wll

6,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316 Stainless Steel D Shackle 1" Size A with No Snag Pin
