316 Stainless Steel Eye and Eye Turnbuckle
316 Stainless Steel Eye and Eye Turnbuckle
SKU:STA-04bb5e
Durable 316 Stainless Steel Turnbuckle with 500 lb WLL. Mil Spec Compliant. Suncor Exclusive. Ideal for marine & industrial use.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
316 Stainless Steel Eye and Eye Turnbuckle
$34.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Eye and Eye Turnbuckle
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine or industrial projects with our Forged Eye and Eye Turnbuckle crafted from grade 316 stainless steel, ensuring exceptional corrosion resistance. Ranging from 1/4" to 1-1/4", these turnbuckles meet ASTM specification F1145-05 (2011) Type 1, Class D standards, providing a safe and durable solution. Engineered for a 500 lb Working Load Limit (WLL), these turnbuckles are drop-forged, Mil Spec compliant, and exclusively from Suncor.

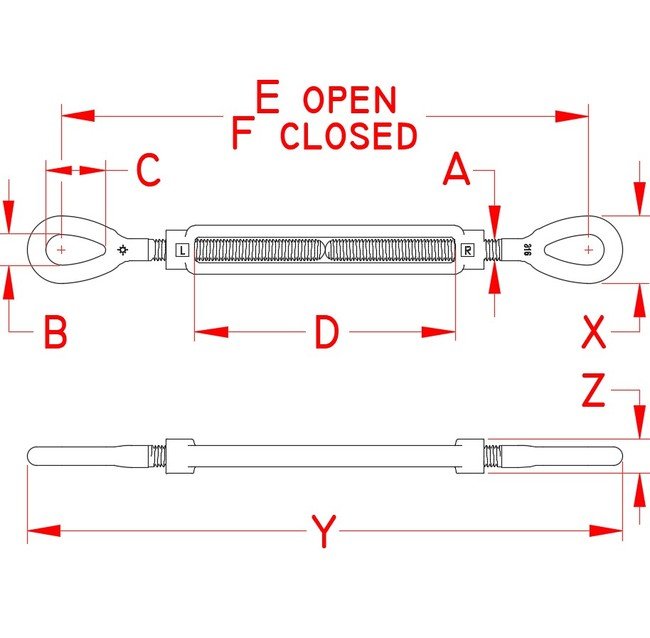

Product Specifications
Specifications Dimension A
1/4 in
Specifications Dimension B
0.33 in
Specifications Dimension C
0.64 in
Specifications Dimension D
4.00 in
Specifications Dimension E
10.20 in
Specifications Dimension F
8.00 in
Specifications Dimension X
0.74 in
Specifications Dimension Y
8.40 in
Specifications Dimension Z
0.52 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.29 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
