316 Stainless Steel Flexible Conduit - Type HFSS, Low Smoke, Zero Halogen

Name: 316 Stainless Steel Flexible Conduit - Type HFSS, Low Smoke, Zero Halogen
Brand: Anamet Electrical, Inc.
SKU: LIQ-002df1
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-002df1

Durable Type HFSS Stainless Steel Flexible Conduit with low smoke, zero halogen properties for high-temp applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

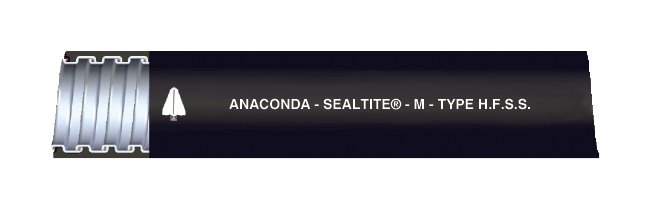

The Type HFSS Stainless Steel Flexible Conduit is engineered for high and low-temperature applications requiring superior corrosion resistance. Its continuously interlocked 316 stainless steel core ensures exceptional crush and corrosion resistance, while the durable, flame-retardant, low smoke, and zero halogen TPU jacket offers heat, oil, and chemical breakdown resistance. Ideal for safety, rail, and infrastructure applications, this conduit meets stringent industry standards including RoHS, WEEE, ASTM E162 for Flame Spread, and ASTM E662 for Smoke Density, making it a reliable choice for critical environments.

Product Specifications

Specifications Approx Inside Bend Radius

2.0 in

Specifications Approx Weight Per 100 Ft

22 lbs

Specifications Color

BLACK

Specifications Core Material

Stainless Steel

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

.484 - .504 in

Specifications Jacket Benefits

Liquid Tight | Low Smoke/Low Flame | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

.690 - .710 in

Specifications Packaging

Carton

Specifications Type

TYPE HFSS

316 Stainless Steel Flexible Conduit - Type HFSS, Low Smoke, Zero Halogen
