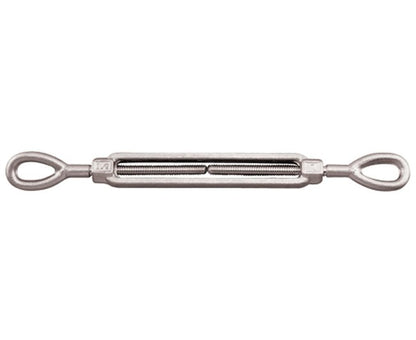

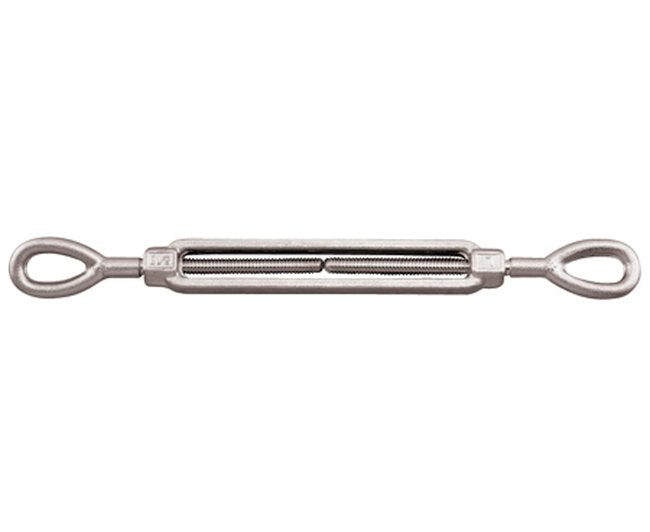

316 Stainless Steel Forged Eye and Eye Turnbuckle

Name: 316 Stainless Steel Forged Eye and Eye Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-c59fe7
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-c59fe7

Grade 316 Stainless Steel Turnbuckle for marine and industrial use. Meets ASTM F1145-05 (2011) Type 1, Class D standards. Maximum load limit 1200 lb.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel Forged Eye and Eye Turnbuckle is designed for marine and industrial applications, offering maximum corrosion resistance and durability. Made from grade 316-NM stainless steel, this turnbuckle meets ASTM F1145-05 (2011) Type 1, Class D standards. With a working load limit of 1200 lb, drop-forged fabrication, and compliance with ASME B30.26-2010 Section 26-2.0, it's the ideal choice for projects demanding reliability and strength.

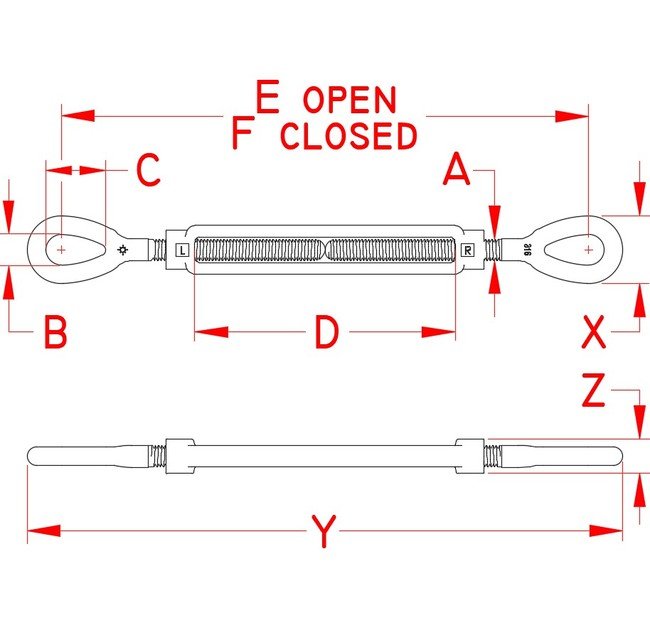

Product Specifications

Specifications Dimension A

3/8 in

Specifications Dimension B

0.50 in

Specifications Dimension C

1.07 in

Specifications Dimension D

6.00 in

Specifications Dimension E

15.90 in

Specifications Dimension F

11.50 in

Specifications Dimension X

1.25 in

Specifications Dimension Y

12.50 in

Specifications Dimension Z

0.78 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

0.8 lb

Specifications Working Load Limit Wll

1200 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
