316 Stainless Steel Forged Full Thread Turnbuckle - Suncor
316 Stainless Steel Forged Full Thread Turnbuckle - Suncor
SKU:STA-9088e3
Enhance projects with the Suncor 316 Stainless Steel Forged Full Thread Turnbuckle. Meets ASTM standards, WLL 500 lb.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316 Stainless Steel Forged Full Thread Turnbuckle - Suncor
$24.99
Quantity: 1
Claim Your Seller Account
316 Stainless Steel Forged Full Thread Turnbuckle - Suncor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

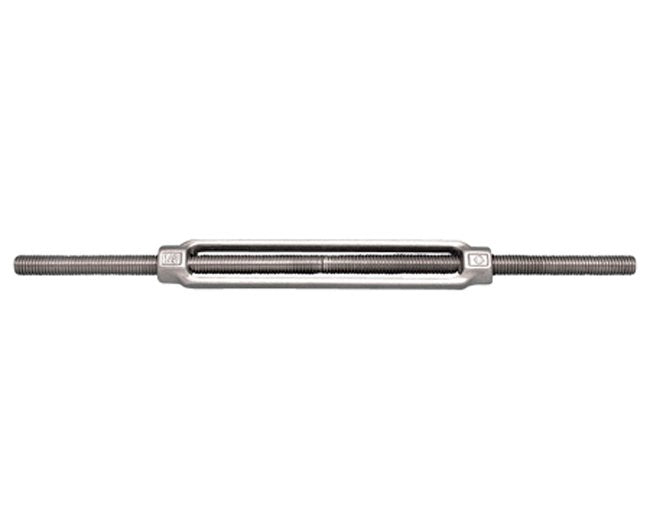

Upgrade your marine and industrial projects with the Suncor Forged Full Thread Turnbuckle. Crafted from grade 316-NM stainless steel, this corrosion-resistant turnbuckle ensures maximum durability. Available in sizes from 1/4" to 1", it precisely meets ASTM specification F1145-05 (2011), Type 1 requirements. With a Working Load Limit (WLL) of 500 lb, this drop-forged turnbuckle offers reliability and performance for diverse applications.
Product Specifications

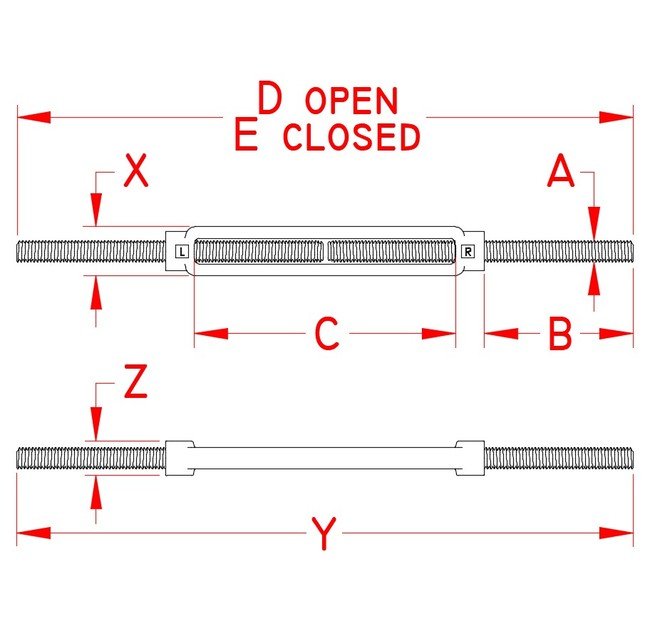

Specifications Dimension A
1/4 in
Specifications Dimension B
2.13 in
Specifications Dimension C
4.00 in
Specifications Dimension D
13.00 in
Specifications Dimension E
9.00 in
Specifications Dimension X
0.75 in
Specifications Dimension Y
9.00 in
Specifications Dimension Z
0.50 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D
Specifications Suncor Exclusive
Yes
Specifications Weight
0.25 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
